YOKE Keyed Eye Point M56 27.2t 8-291K-140 1 pc

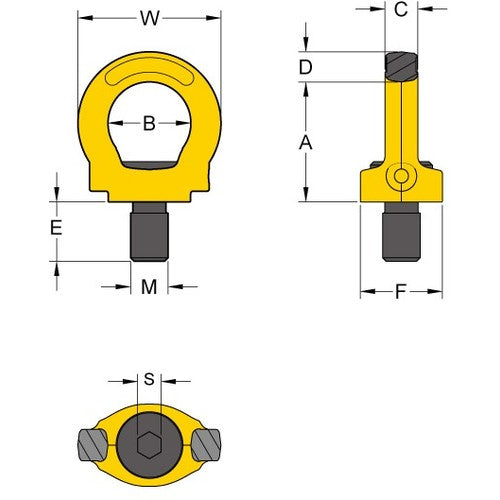

Catalog number: 8-291K-140 Features: ●Rotates 360° in the axial direction. ●Allows horizontal lifting and pulling up, which was not possible with JIS type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy materials, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 27.2 / 90° horizontal suspension: 12.8 ●Bolt size: M56 ●Dimension (mm) A: 147 ●Dimension (mm) B: 102 ●Dimension (mm) C: 40 ●Dimension (mm) D: 43 ●Dimension (mm) E: 84 ●Dimension (mm) F: 124 ●Dimension (mm) M: M56 ●Dimension (mm) W: 178 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
