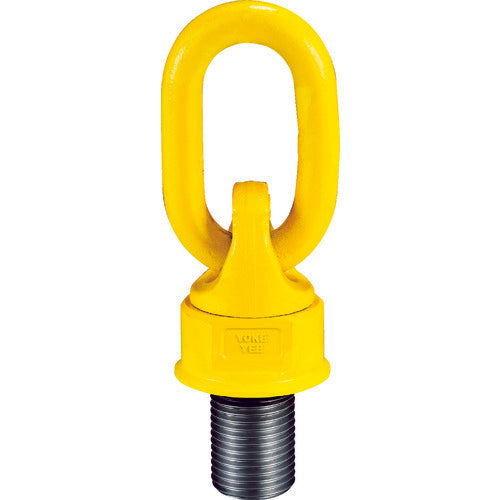

YOKE Swivel Point M12 0.96t 8-271-006 1pc

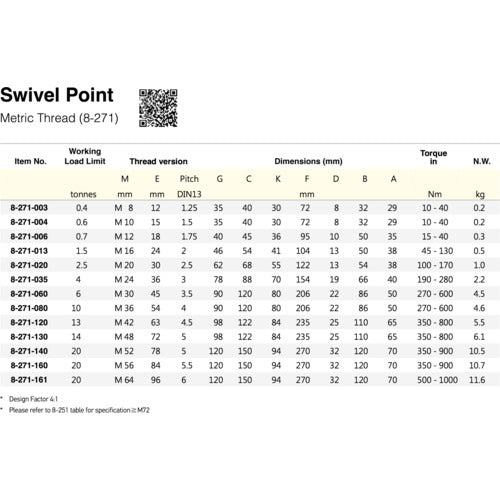

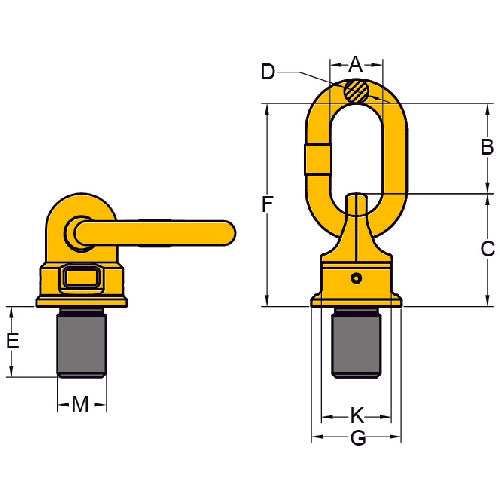

Catalog number: 8-271-006 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 0.96 / 90° horizontal suspension: 0.56 ●Bolt size: M12 ●Dimension (mm) A: 35 ●Dimension (mm) B: 50 ●Dimension (mm) C: 45 ●Dimension (mm) D: 10 ●Dimension (mm) E: 18 ●Dimension (mm) F: 95 ●Dimension (mm) G: 40 ●Dimension (mm) K: 36 ●Breaking load (kN): 40 ●Thread diameter: M12 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 15-40 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
