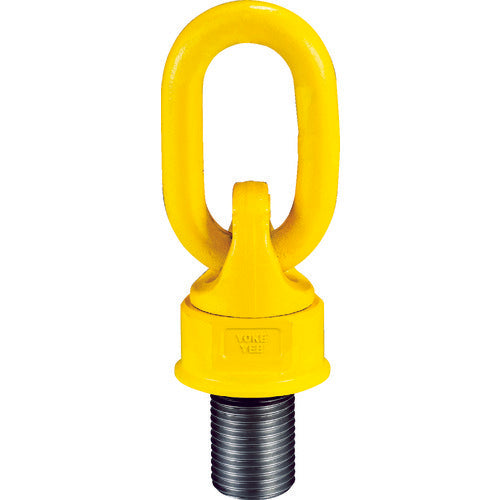

YOKE Swivel Point M52 20t 8-271-140 1 piece

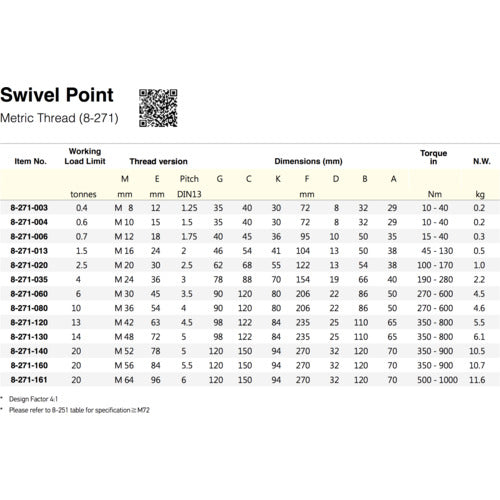

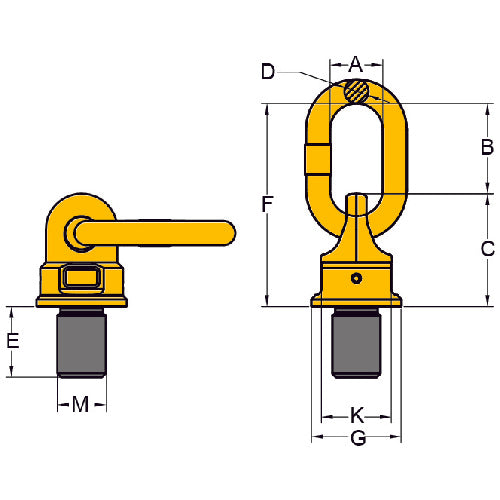

Catalogue number: 8-271-140 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components, machinery and equipment. Specifications: ●Basic load capacity (t): Vertical suspension: 20 / 90° horizontal suspension: 16 ●Bolt size: M52 ●Dimension (mm) A: 70 ●Dimension (mm) B: 120 ●Dimension (mm) C: 150 ●Dimension (mm) D: 32 ●Dimension (mm) E: 79 ●Dimension (mm) F: 270 ●Dimension (mm) G: 120 ●Dimension (mm) K: 94 ●Breaking load (kN): 120 ●Thread diameter: M52 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 350-900 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
