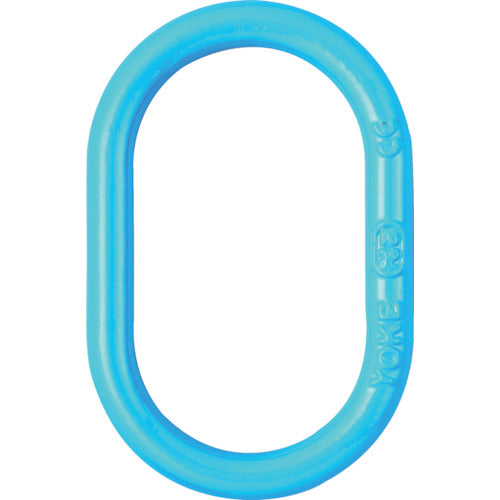

YOKE G-100 Master Link X-003 12.8t X-003-19 1 piece
YOKE G-100 Master Link X-003 12.8t X-003-19 1 piece
Regular price
¥17,818
Regular price
Sale price
¥17,818
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

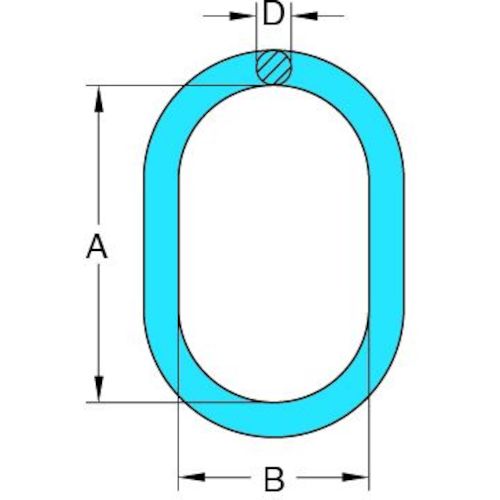

Catalog number: X-003-19 Features: ●Heat-treated alloy steel with quenching and tempering. ●Complies with international standards such as EN and ASME. Applications: ●As a master link for lifting operations, etc. ●Suitable for use in combination with wire rope. Specifications: ●Basic load capacity (t): 12.8 ●Suitable chain wire diameter (mm) single lifting: 19/20 ●Type: Wire rope orientation ●Dimensions (mm) a: 120 ●Dimensions (mm) d: 30 ●Dimensions (mm) p: 200 ●Grade 100 master link ●Complies with ASTM A906/906M, ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4, OSHA 1910.184, DIN PAS1061 ●Complies with REACH regulations Material/Finish: ●Forged alloy steel
