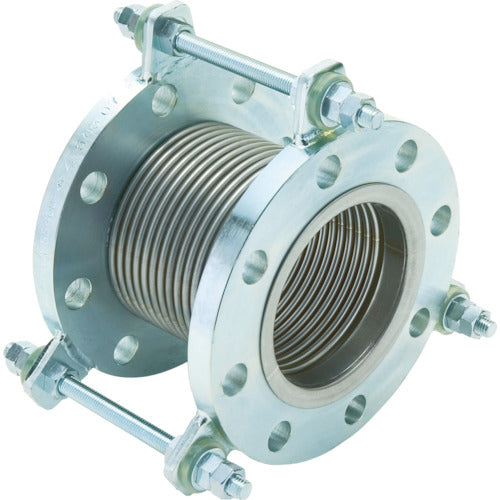

ZENSHIN Stainless Steel Anti-Vibration Joint (Flange Type) AV JOINT-100 1 Piece

Catalog number: AV JOINT-100 Features: ●Double-layer structure with outer layer SUS304 and inner layer SUS316L provides excellent corrosion resistance, vibration absorption, and pressure resistance. ●Excellent durability as no welding is used to assemble the bellows. ●By using recycled materials, CO2 emissions have been reduced by approximately 34% compared to conventional products. Applications: ●For absorbing vibration in pump piping. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Total length (mm): 150 ●Maximum operating pressure (MPa): 1MPa (at room temperature) ●Operating temperature range (℃): -40 to 80 ●Compatible fluids: Cold and hot water, hot water supply (limited to non-corrosive fluids) Material/Finish: ●Flexible part: Stainless steel (SUS304, SUS316L) ●Flange part: Steel (SS400)
