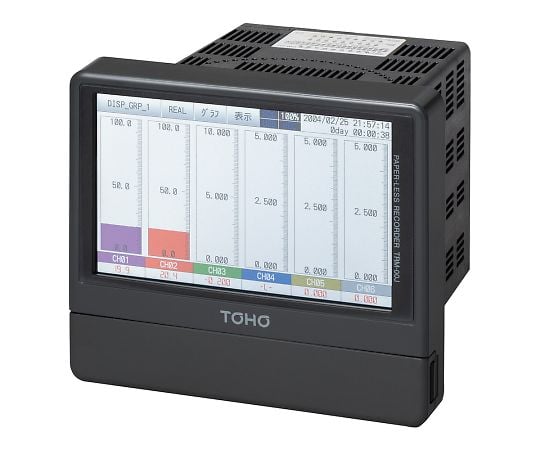

6CH paperless recorder 6-point input recorder TRM-00J-Z 1 unit

Equipped with a large 7-inch touch panel, it can be used with simple operations. Large capacity recording (up to 32GB) is possible using SD cards and USB memory. Supports 6-channel multi-input. Specifications: 6-point input recorder Size (mm): 185 x 188 x 160 Measurement interval: 100 ms Recording cycle: 100ms to 60 minutes Input types: Thermocouple, resistance thermometer, DC voltage, DC current 4 to 20 mA (external shunt resistor 250 Ω) Display: 7-inch TFT color LCD wide VGA (pressure-sensitive touch panel) Display items: Real-time trend, historical trend, bar graph, digital display, event history display DI: 9 non-voltage contacts DO: 12 open collector outputs (shared common) Alarm output: Number of settings/each channel 4 points (open collector output: 1 point, contact rating: DC30V/20mA) Recording media: SD card, USB memory (up to 32GB) Record file data storage cycle: 10 minutes to 1 year Recording format: CSV format Communication standard: RS485, USB2.0 Power supply specifications: AC100-240V 50/60Hz Material: PC-ABS (both case and bezel) Weight: Approx. 1.4kg Dust and water resistant: IP54 compliant Power cord: Approx. 2m (3P plug)
