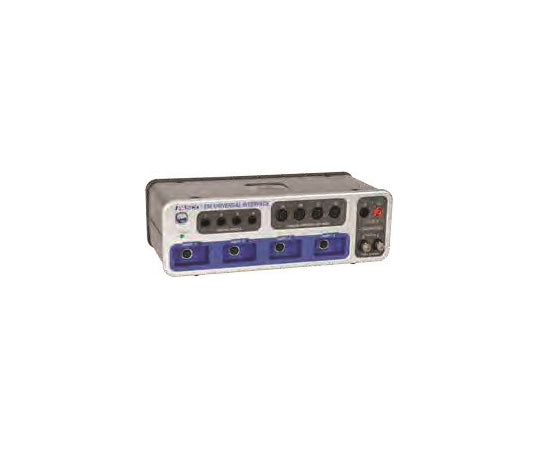

850 Interface UI-5000 100-710 1 unit

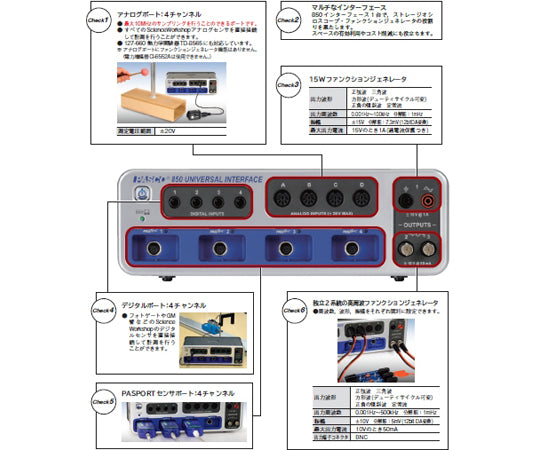

This is a high-performance interface with up to 4 analog sensor ports, ultra-high speed sampling of 10 MHz* (every 0.1 μs), and a built-in 15 W function generator. *For 3 or more channels, the maximum is 1MHz. You can also use the Capstone's scope function to operate it like a digital oscilloscope. *Capstone (single user or site license) is required to use this product. Analog ports: 4 channels This port is capable of sampling at up to 10MHz. All ScienceWorkshop analog sensors can be directly connected and used for measurements. Also compatible with 127-660 Thermodynamics Experiment Apparatus TD-8565. The analog port does not have a function generator function. (The power amplifier CI-6552A cannot be used.) Multiple Interfaces A single 850 interface acts as a storage oscilloscope and function generator, helping to make efficient use of space and reduce costs. 15W Function Generator Output waveforms: Sine wave, triangle wave, square wave (variable duty cycle), positive and negative ramp wave, steady flow Output frequency: 0.001Hz to 100kHz Resolution: 1mHz Amplitude: ±15V Resolution: 7.3mV (12bit DA conversion) Maximum output current: 1A at 15V (with overcurrent protection) Digital port: 4 channels You can directly connect ScienceWorkshop digital sensors such as photogates and GM tubes to take measurements. PASPORT sensor port: 4 channels Two independent high frequency function generators: frequency, waveform and amplitude can be set individually. Output waveforms: Sine wave, triangle wave, square wave (variable duty cycle), positive and negative ramp wave, steady flow Output frequency: 0.001Hz to 500kHz Resolution: 1mHz Amplitude: ±10V Resolution: 5mV (12bit DA conversion) Maximum output current: 50mA at 10V Output terminal connector: BNC Main features: High-performance model compatible with both PASPORT and Science Workshop Compatible sensors: PASPORT series, Science Workshop series Connection to computer: USB Connection with tablet device × Maximum sampling rate: 10MHz (analog) Power supply: AC adapter Number of PASPORT sensor ports: 4 Science Workshop Sensor Number of Ports Analog 4 Digital 4 Compatible software: Capstone Basic Specifications Size: W285×D170×H98mm USB connection: USB2.0 (480Mbps) Accessories: AC adapter, USB cable Product code: 100-710
