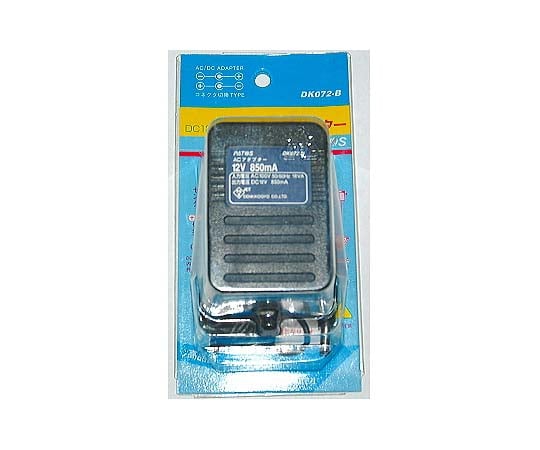

AC adapter 12V/850mA DK072B 1 piece
AC adapter 12V/850mA DK072B 1 piece
AC adapter DK series
Bench Power Supplies and Power Measurements
Electronic Components, Power Supplies, Connectors
Electronic/Electrical Components and Control Devices
Industrial AC Adapter
Input/Output Devices
IT-related/DX support
Martsu Elec
Power supplies and transformers
Power supplies, AC adapters, etc. (for PCs)
Research Equipment
Regular price
¥3,465
Regular price
Sale price
¥3,465
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is a linear type (non-switching) unregulated AC adapter.
Since it does not perform switching, it is low noise. It is suitable for high-precision analog equipment and audio that are extremely sensitive to noise. The output is unstabilized, so the output voltage of 12V is a guideline. If you need exactly 12V, use an adapter with a slightly higher voltage such as 15V and stabilize it to 12V with a 3-terminal regulator. Input voltage (V50/60Hz) AC100V
Output voltage DC12V
Output current: 850mA
Output plug shape DC inner diameter φ2.1/outer diameter φ5.5
Input plug shape: Direct-attach type
The output plug at the end of the polarity cord is detachable and will be "center positive" or "center negative" depending on the direction it is inserted. Be sure to check the polarity before connecting to a device.
DC cord length: 1.8m
Remarks: Transformer type (non-stabilized)
