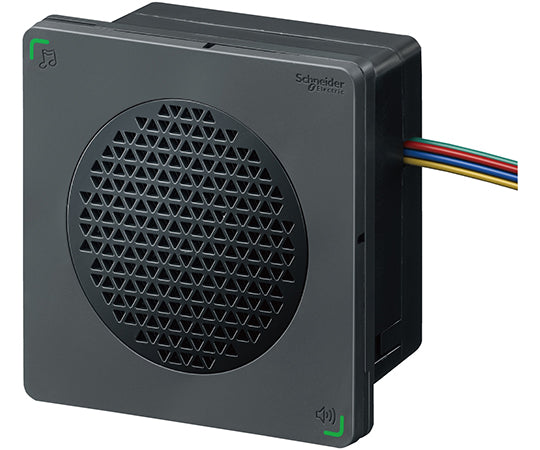

DIN96 electronic sound alarm XVSA9MBN 1 piece

This electronic sound alarm conforms to DIN (96 x 96) standards, is compact in size and is ideal for embedding in a control panel. (Also supports exposed installation.) You can control the 16 built-in tones, including 9 melodies, using bit input or binary input. With bit input, you can use the rotary switch on the front to set any tone group and control four tones. The binary input allows 15 sounds to be controlled by external signals. The volume is up to 96dB (stepless adjustment from 0dB to 96dB on the front panel). It has a vibration resistance of 7.1G, so it can be used safely even in harsh conditions such as in construction machinery vehicles. The non-voltage contact circuit supports NPN/PNP open collector connection and can be directly driven by a PLC. This product complies with IEC/EN standards. It can be used safely on devices that require CE marking when exporting to EU countries. Protection characteristics are IP65 (when embedded and installed in the correct direction), IP20 (when exposed and installed in the correct direction).
