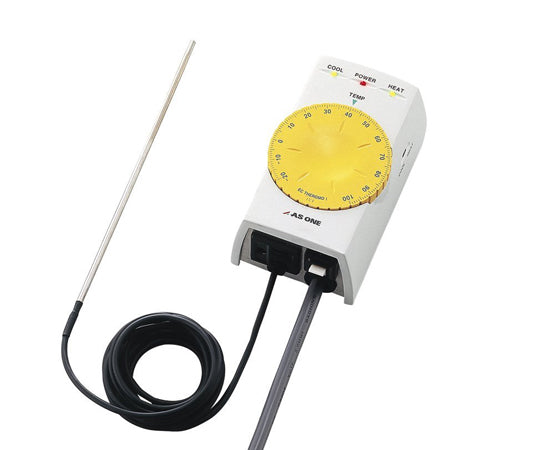

EC Thermo Type I -20 to 100℃ Type I 1 unit

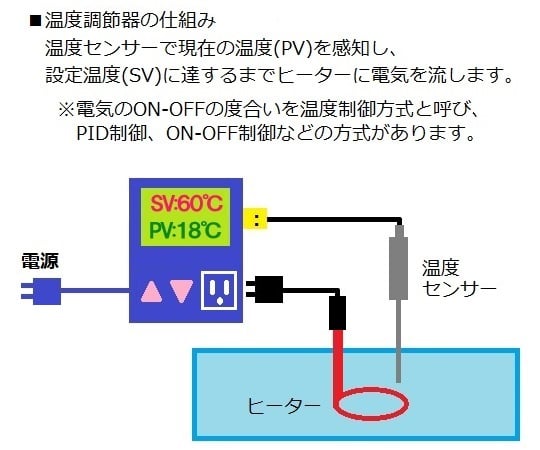

Temperature control is by microcomputer proportional control, which enables stable temperature control with less hunting compared to ON/OFF control. By switching the switch on the side of the main unit, it is possible to operate it in either forward or reverse, so it is possible to control the temperature of not only heating equipment but also cooling equipment such as coolers. *Do not connect inductive load equipment directly to this unit. Model number: I type Temperature setting range: -20 to 100°C Temperature setting: Analog scale (scale width 1°C) Temperature control method: Microcomputer proportional control Sensor: K thermocouple Sensor size: φ4×200mm (cord length: 1.7m) Connection capacity: Resistive load MAX 12A Safety device: Circuit breaker Power supply: AC100V 50/60Hz Body size: 75 x 127 x 55 mm The product number for this product will be changed due to a change in the specifications of the main power switch. The main power switch of the successor model will be changed to red. There will be no other changes. Substitute: 1-4599-11 EC Thermo 1 type -20 to 100°C
