HDMI capture unit, HDMI non-certified, USB-A conversion adapter included, black, AD-HDMICAPBK, 1 piece
HDMI capture unit, HDMI non-certified, USB-A conversion adapter included, black, AD-HDMICAPBK, 1 piece
Regular price
¥18,722
Regular price
Sale price
¥18,722
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

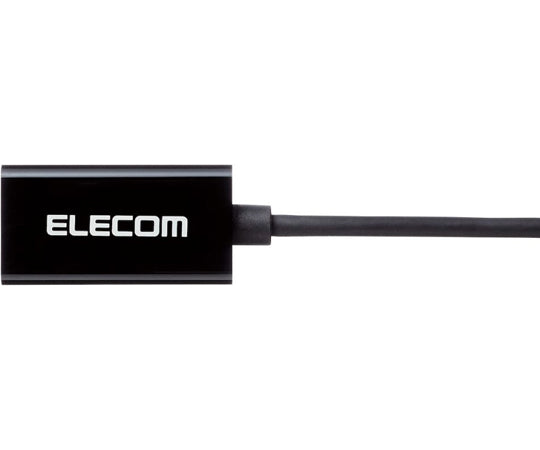

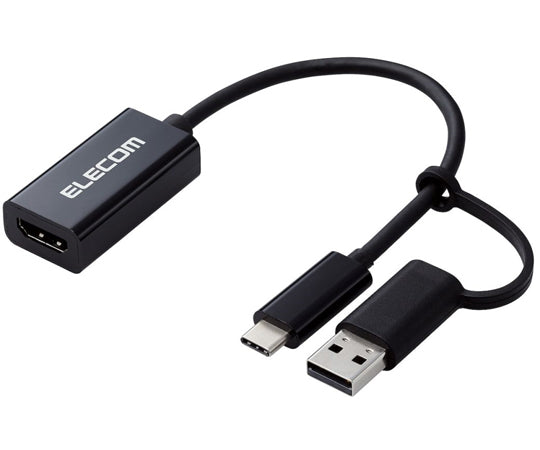

This is an HDMI capture device that can convert the video signal from a device equipped with an HDMI connector and import the video into a computer equipped with a USB Type-C™ connector or USB-A connector.

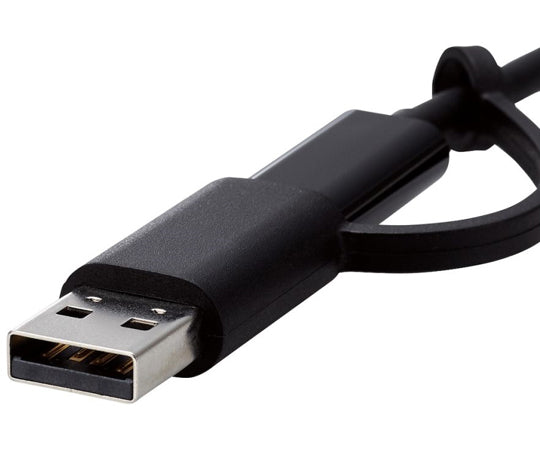

It comes with an adapter that converts the USB Type-C™ connector into a USB-A connector, allowing it to be connected to a variety of computers.
No drivers are required; simply connect the devices to use.
The maximum resolution that can be output to a computer is FullHD (1920 x 1080) / 30Hz, and the maximum resolution that can be input from a camera, game console, etc. is 4K (3840 x 2160) / 30Hz.
The inside of the adapter body features a metal shell structure that provides high shielding and is less susceptible to external noise.
It uses a triple shielded cable that is less susceptible to interference from external noise.
We use gold-plated pins that are resistant to rust and other factors and reduce signal degradation.
This product is an active type equipped with an IC.
*It is not possible to convert USB Type-C™ connectors or USB-A connectors to HDMI connectors.
*If the image is not displayed correctly, try turning the connected camera, game console, etc. on and off, or unplugging and plugging in each connection connector.
*It may not work properly depending on the environment and equipment.
* Operation on all devices is not guaranteed.
*When using this product to output camera video to a computer, please make sure that the camera supports the HDMI pass-through function.
*If you want to capture game footage, you will need to prepare capture software separately.
*Audio output only supports mono.
This product meets one or more of ELECOM's environmental certification standards and bears the "THINK ECOLOGY" mark.
As part of our efforts to protect the environment, this product uses plastic in its packaging that is 20% less than our in-house standard.
In an effort to conserve the environment, this product's packaging is made only of paper, cardboard, and plastic bags. Compatible models: HDMI connector side: Cameras and game consoles that support the HDMI pass-through function USB connector side: Computers equipped with a USB Type-C™ connector or USB-A connector
Supported resolution: Input resolution: Maximum 4K (3840 x 2160) / 30Hz Output resolution: FullHD (1920 x 1080) / 30Hz

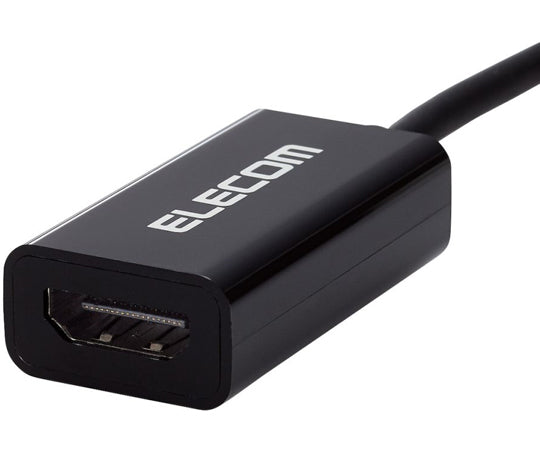

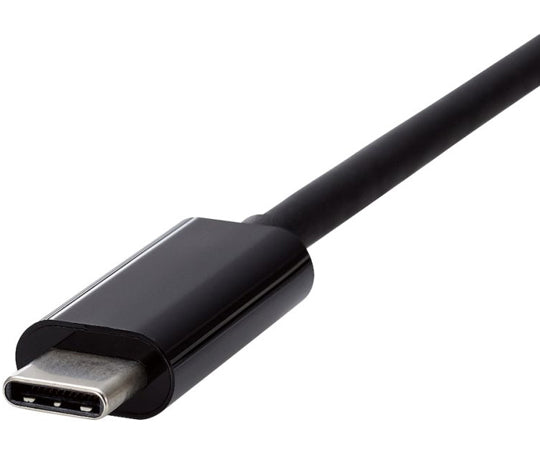

Connector type: USB Type-C™ male connector or USB-A male connector - HDMI (Type-A) female connector
Shielding method: Triple shielding
Plug plating specifications: Shell: nickel, pin: gold plating
Cable thickness: Approx. 4mm
Color: Black
Environmental considerations: EU RoHS Directive compliant (10 substances) (as of October 2022)
Cable length: Approx. 0.12m *Not including connector
