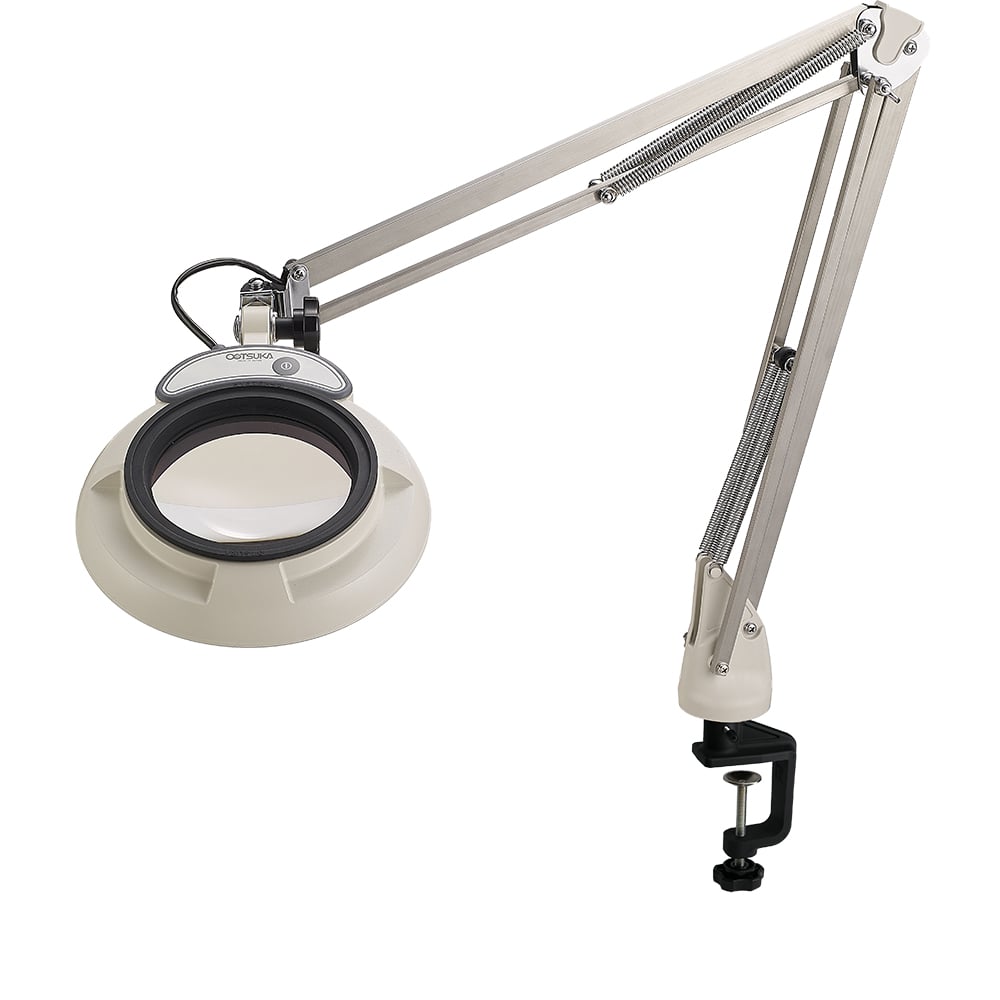

LED illuminated magnifier (free arm, clamp mounting type) SKKL-F 4x 1 unit

It uses round optical glass lenses for ease of use. The newly designed slim head is made specifically for LEDs and uses a board-mounted LED with high color rendering (Ra≧90) and excellent heat dissipation performance. The flat diffusion and protective cover protects the workpiece and light source while reducing the glare that is characteristic of LEDs, enabling inspection under uniform lighting with no unevenness in illumination. The ON/OFF switch and dimming volume (100 to approximately 10%) are located on the head, improving operability. The clamp mounting section has been newly designed with strength and ease of use in mind, and its compact size means it does not interfere with your work space. The head swing function has been adopted, providing greater freedom in terms of arm and installation position. This product is compatible with the interchangeable lens system. The lens magnification can be easily changed by removing it. Power supply: AC100-240V 50/60Hz (If used with a voltage of 125V or higher, a plug change is required separately.) Power cord length: (AC and DC sides) 1.8m Light source: LED (design life 40,000 hours) Arm length: Approx. 1m Clamping width: 15 to 60 mm No dimming function Magnification: 4x Lens diameter (φmm): 130 Lens construction: 2-element lens Free arm clamp installation
