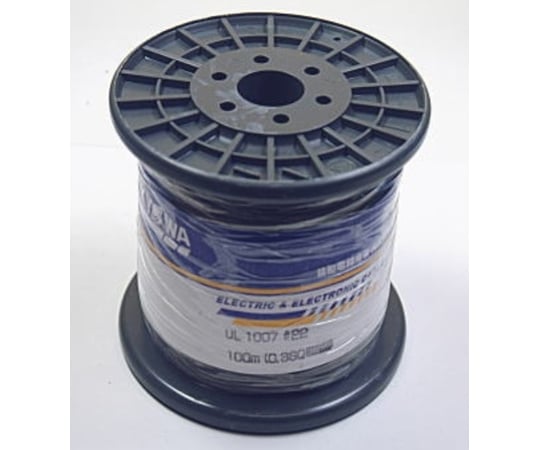

UL1007 Heat-resistant vinyl insulated wire, black, 100m, AWG22, UL1007AWG22-100MR(BK), 1 reel

This is an electric wire that complies with the American standard UL1007. 1 reel is 100m long. Electronic, electrical internal wiring (secondary lead wires) Because it is a heat-resistant cable, it can be used in places with relatively high environmental temperatures. Bobbin wound, 100m per turn. Contains no lead compounds. Size: AWG22 Color: Black Length: 100M Heat resistance: 80℃ Withstand voltage: 300V Allowable current (maximum): 3A (7A) Conductor (Fujikura Electric Wire): Twisted core [17/0.16] Tin-plated soft conductor Conductor (Tohnichi Kyosan Cable): Twisted core [17/0.16] Tin-plated soft conductor Conductor cross-sectional area: 0.32SQ (equivalent to 0.3SQ) Finished outer diameter: approx. 1.6 mm
