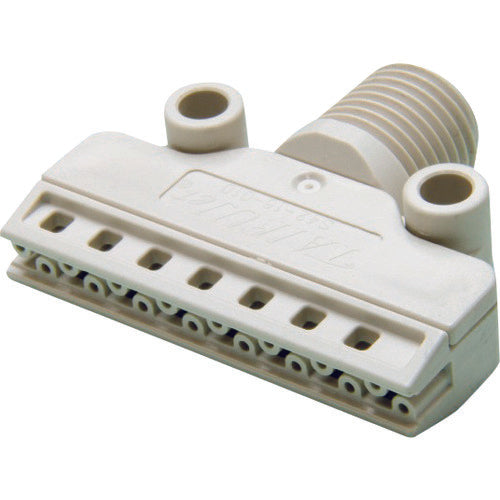

IKEUCHI Compact Flat Air Nozzle TAIFUJet Series PPS Resin Thread 1/4 Male Φ1.0 1/4MTFFS4216010PPS 1 Piece

Catalog number: 1/4MTFFS4216010PPS Features: ●Compact design with a total length of 35 mm. ●Involves surrounding air to increase the amount of spray. ●Air nozzle with a spray width of 42 mm. Applications: ●Liquid cutting and drying, dust blowing, air cooling. ●Cleaning, peeling, air curtains, etc. Specifications: Nozzle mounting port: R1/4 Nozzle shape: Compact flat Nozzle width (mm): 42 Nozzle length (mm): 35 Nozzle diameter (mm): 1.0 Air mounting port: R1/4 Width (mm): 42 Total length (mm): 35 Air pressure (MPa): 0.7 Air consumption: 440NL/min (at 0.3MPa) Heat resistance temperature (℃): 40-80℃ Suitable fluid: Compressor air Manufacturer's official part number: 1/4M TF-FS 42-16-010 PPS Material/Finish: Polyphenylene sulfide (PPS)
