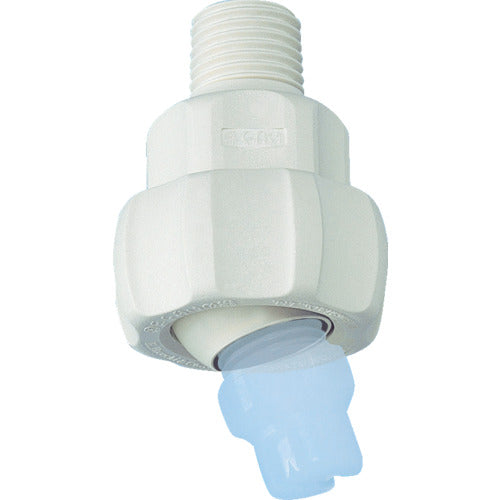

Ikeuchi Ball Joint UT Series PP Resin Thread 1/8 Male x 1/8 Female UT1/8MX1/8FFRPP-IN 1 Piece

Catalog number: UT1/8MX1/8FFRPP-IN Features: ●Angle adjustment is possible while spraying up to 0.3MPa pressure. ●No O-ring required, can be fixed by hand tightening. ●Accurate positioning after piping. ●Ideal for when you want to install at an angle or change the direction each time. Uses: ●When you want to install at an angle or change the direction each time. Specifications: ●Thread size inlet side: R1/8 ●Thread size outlet side: Rc1/8 ●Dimensions (mm) total length: 38.0 ●Dimensions (mm) maximum diameter: 32 ●Adjustable angle (°): 50 (25 degrees each left and right) ●Dimensions (mm) (total length x maximum diameter): 38 x 32 Material/Finish: ●Glass fiber reinforced polypropylene (FRPP) Note: ●Spray nozzle sold separately.
