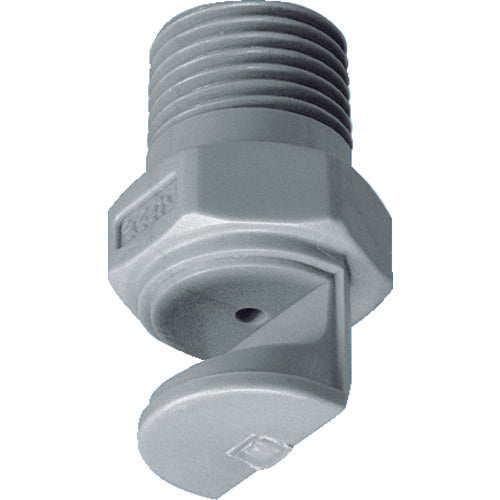

IKEUCHI Wide-angle fan-shaped nozzle YYP series PVC resin 1/8 male screw 115° 1/8MYYP03PVC-IN 1 piece
IKEUCHI Wide-angle fan-shaped nozzle YYP series PVC resin 1/8 male screw 115° 1/8MYYP03PVC-IN 1 piece
Regular price
¥1,205
Regular price
Sale price
¥1,205
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

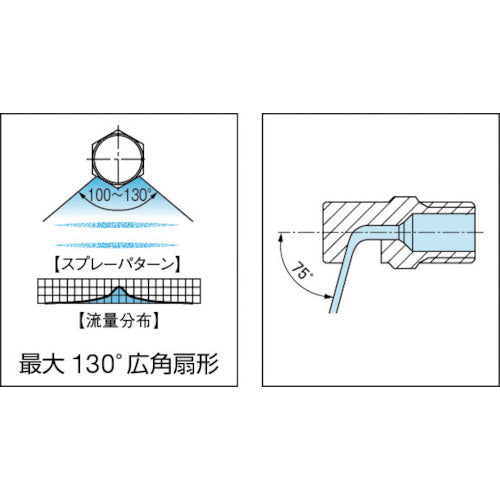

Catalog number: 1/8MYYP03PVC-IN Features: ● Produces a wide-angle fan-shaped spray despite low liquid pressure. Applications: ● For spraying to clean machinery and equipment or for extinguishing fires. Specifications: ● Spray angle (°): 115 (0.15 MPa) ● Spray volume (L/min): 0.30 (0.15 MPa) ● Thread size: R1/8 ● Dimensions (mm) Overall length: 21.5 ● Dimensions (mm) Hexagonal width: 12 ● Thread dimensions: R1/8 ● Standard pressure: 0.15 MPa ● Spray angle: 100 to 130° (75° elevation angle) Material/Finish: ● Polyvinyl chloride (PVC)
