IKEUCHI Standard Fan-Shaped Nozzle VVP Series PP Resin Thread 1/4 Male 90° 1/4MVVP9030PP-IN 1 pc

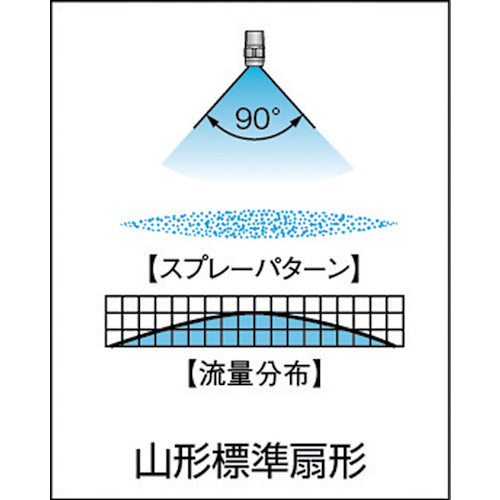

Catalog number: 1/4MVVP9030PP-IN Features: ●Produces a fan-shaped spray with a mountain-shaped flow distribution that is strong in the center and gradually weakens towards both ends. ●When multiple nozzles are arranged and both ends of the pattern are overlapped, the flow distribution becomes even across the entire width. Applications: ●For cleaning automobiles, vehicles, various containers, etc. Specifications: ●Spray angle (°): 90 (0.3 MPa) ●Spray volume (L/min): 3.0 (0.3 MPa) ●Thread size: R1/4 ●Dimensions (mm) Overall length: 27 ●Dimensions (mm) Hexagonal face: 14 ●Thread dimensions: R1/4 ●Standard pressure: 0.3 MPa Material/Finish: ●Polypropylene (PP)
