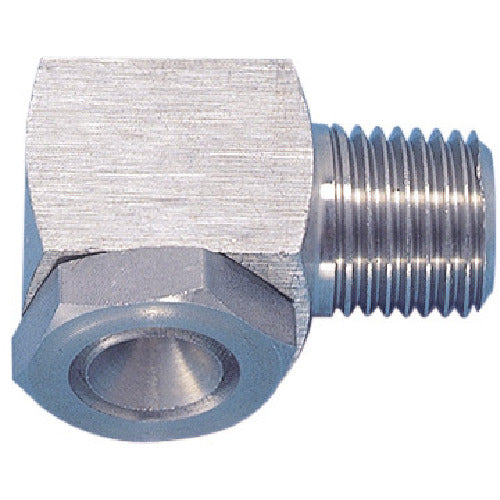

IKEUCHI Clogging-free filling cone nozzle AJP series Stainless steel 303 1/4 male thread 80° 1/4MAJP06S303 1 pc

Catalogue number: 1/4MAJP06S303 Features: ● A full-cone nozzle with a circular spray pattern and even flow distribution. ● This nozzle does not use a swirl element and atomizes the liquid through impingement inflow, so the diameter through which foreign objects can pass is extremely large. ● Sprays perpendicular to the liquid inflow direction. Applications: ● For applications where nozzle clogging is a particular concern, such as when using circulating water. ● For spraying to clean equipment and to break down foam. Specifications: ● Spray angle (°): 80 (at 0.2 MPa) ● Spray volume (L/min): 6.00 (at 0.2 MPa) ● Thread size: R1/4 ● Dimensions (mm) Overall length: 32 ● Dimensions (mm) Hexagonal width: 16 ● Thread dimensions: R1/4 ● Standard pressure: 0.2 MPa Material/Finish: ● Stainless steel
