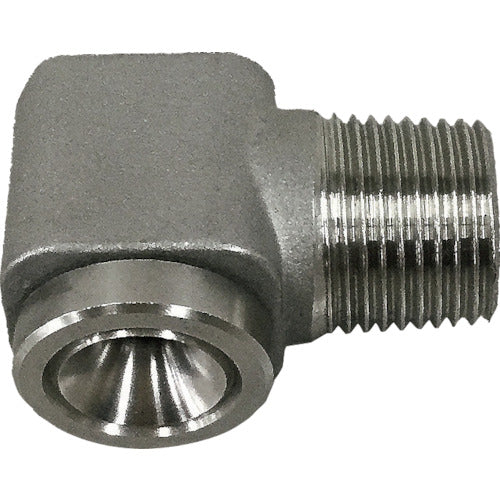

IKEUCHI Clogging-free filling cone nozzle AJP series Stainless steel 303 Thread 3/8 Male 85° 3/8MAJP16S303 1 pc

Catalogue number: 3/8MAJP16S303 Features: ● A full-cone nozzle with a circular spray pattern and even flow distribution. ● This nozzle does not use a swirl element and instead atomizes the liquid through impingement inflow, resulting in an extremely large diameter through which foreign objects can pass. ● Sprays perpendicular to the inflow direction of the liquid. Applications: ● For applications where nozzle clogging is a particular concern, such as when using circulating water. ● For spraying to clean equipment and to break down foam. Specifications: ● Spray angle (°): 85 (at 0.2 MPa) ● Spray volume (L/min): 16.0 (at 0.2 MPa) ● Thread size: R3/8 ● Dimensions (mm) Overall length: 36 ● Dimensions (mm) Hexagonal width: 20 ● Thread dimensions: R3/8 ● Standard pressure: 0.2 MPa Material/Finish: ● Stainless steel
