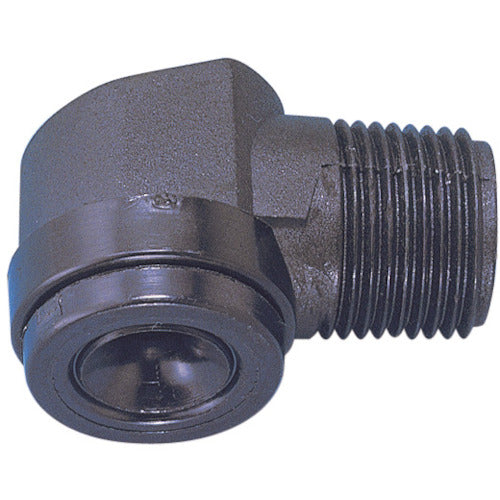

IKEUCHI Clogging-free filling cone nozzle AJP series PPS resin 1/4 male thread 80° 1/4MAJP06PPS 1 pc

Catalog number: 1/4MAJP06PPS Features: ● A full-cone nozzle with a circular spray pattern and even flow distribution. ● This nozzle does not use a swirl element and atomizes the liquid through collision inflow, so the foreign object passage diameter is extremely large. ● Sprays at right angles to the liquid inflow direction. Applications: ● For applications where nozzle clogging is a particular concern, such as when using circulating water. ● For spraying to clean equipment and to break down foam. Specifications: ● Spray angle (°): 80 (at 0.2 MPa) ● Spray volume (L/min): 6.00 (at 0.2 MPa) ● Thread size: R1/4 ● Dimensions (mm) Overall length: 32.5 ● Thread dimensions: R1/4 ● Standard pressure: 0.2 MPa Material/Finish: ● Polyphenylene sulfide (PPS)
