It can be connected by passing through hard tubes, glass tubes, metal pipes, etc. with an outer diameter of up to φ4 mm.
When installing or removing the cap, you can turn only the cap without twisting the tube.
Material: PFA (fluororesin) and PPS (polyphenylene sulfide)
Number of sockets: GL14 x 2
Autoclave: Yes
Heat resistance: 0 to +200°C
Connection tube outer diameter: φ1.6 to 4.0 mm
For hard multi-tubes

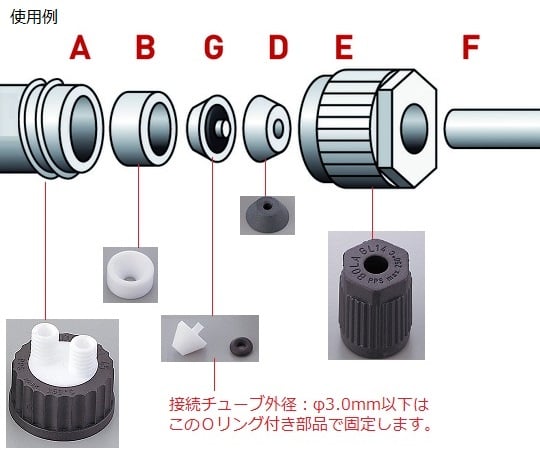

*A screw joint set (1-7427-03 to 07) is required separately to connect the tube.
RoHS2 (EU)2015/863 compliant [About RoHS]
