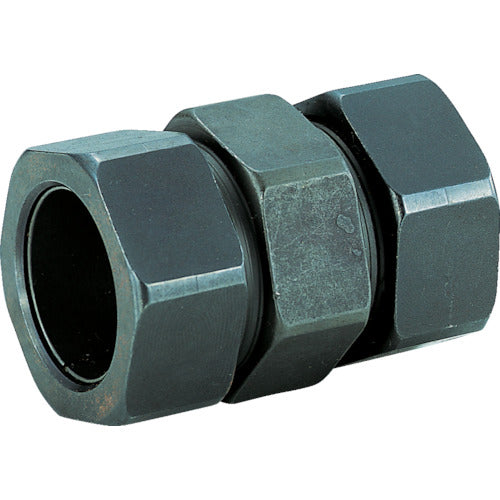

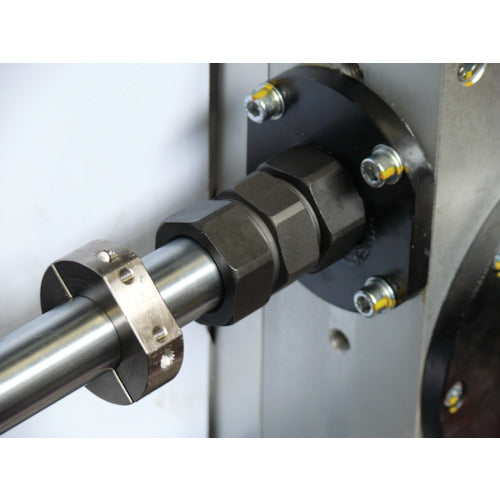

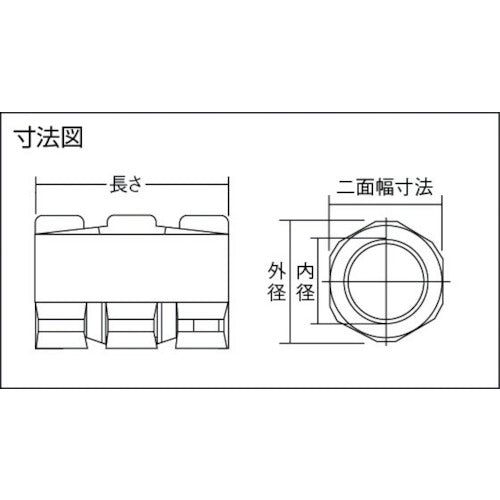

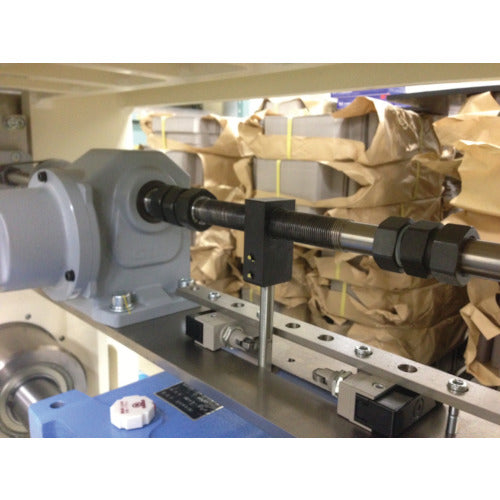

Catalogue number: N-12-12 Features: ●No backlash (play or gap) and can withstand combined torque and thrust loads. ●Compact and lightweight with little inertia, simple structure and easy installation and disassembly. ●Coupling for keyless fixing of shafts. ●The surface is treated with manganese phosphate coating to prevent seizing. Applications: ●Fixing of input and output shafts to each unit. Specifications: ●Inner diameter (mm): 12 ●Outer diameter (mm): 21 ●Length (mm): 32 ●Maximum allowable torque (N・m): 37.3 ●Allowable thrust (N・m): 2010 ●Face width dimension (mm): 19 ●Operating temperature range: -20 to 100°C Material/Finish: ●Steel Set contents/Accessories: ●Freight separately
