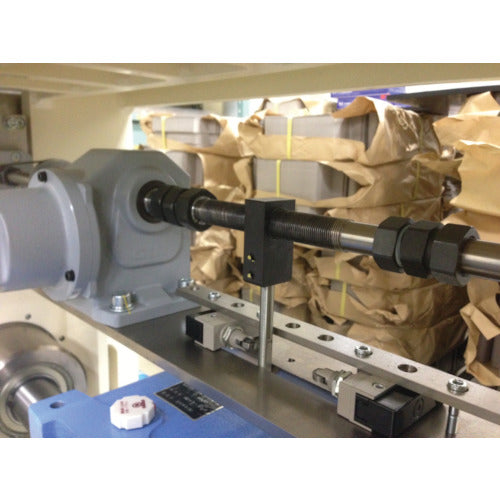

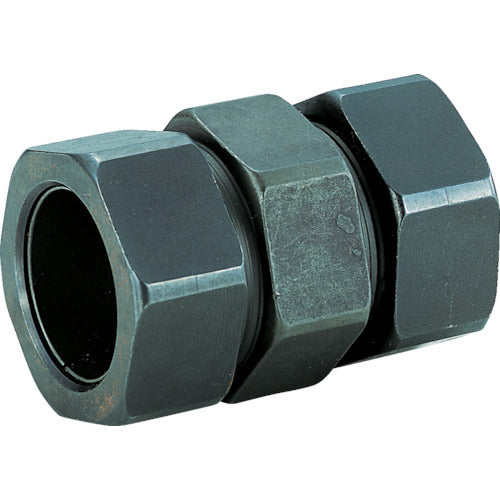

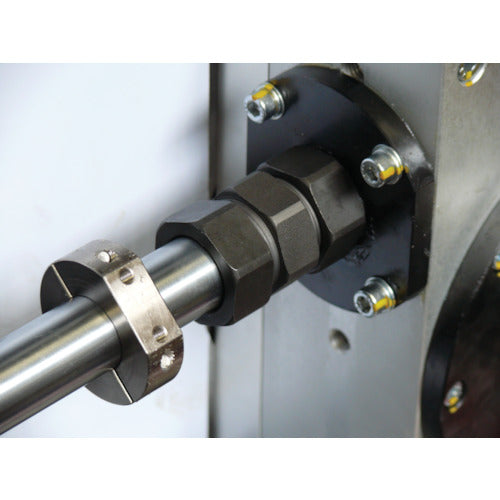

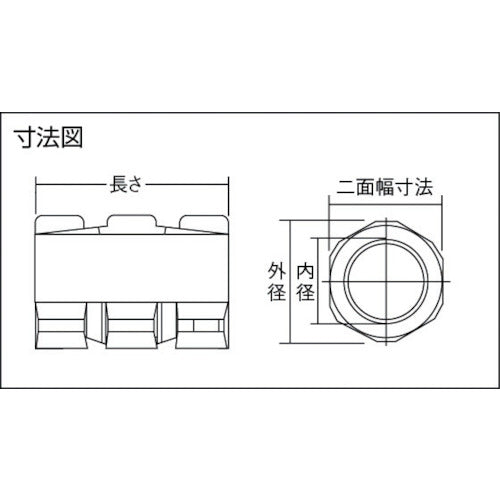

Catalogue number: N-18-18 Features: ●No backlash (play or gap) and can withstand combined torque and thrust loads. ●Compact and lightweight with little inertia, simple structure and easy installation and disassembly. ●Coupling for keyless fixing of shafts. ●The surface is treated with manganese phosphate coating to prevent seizing. Applications: ●Fixing of input and output shafts to each unit. Specifications: ●Inner diameter (mm): 18 ●Outer diameter (mm): 30 ●Length (mm): 45 ●Maximum allowable torque (N・m): 68.6 ●Allowable thrust (N・m): 3942 ●Two-sided width dimension (mm): 27 ●Operating temperature range: -20 to 100°C Material/Finish: ●Steel Set contents/Accessories: ●Freight separately
