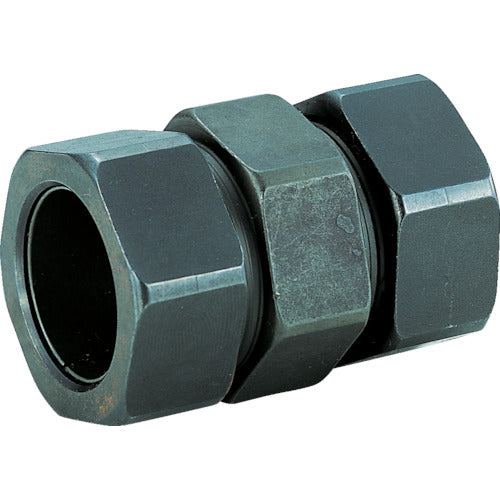

Catalogue number: N-20-20 Features: ●No backlash (play or gap) and can withstand combined torque and thrust loads. ●Compact and lightweight with little inertia, simple structure and easy installation and disassembly. ●Coupling for keyless fixing of shafts. ●The surface is treated with manganese phosphate coating to prevent seizing. Applications: ●Fixing of input and output shafts to each unit. Specifications: ●Inner diameter (mm): 20 ●Outer diameter (mm): 32.5 ●Length (mm): 50 ●Maximum allowable torque (N・m): 88.2 ●Allowable thrust (N・m): 4952 ●Two-sided width dimension (mm): 30 ●Operating temperature range: -20 to 100°C Material/Finish: ●Steel Set contents/Accessories: ●Freight separately
