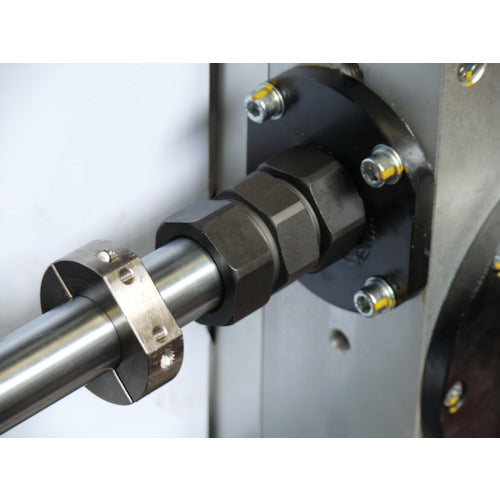

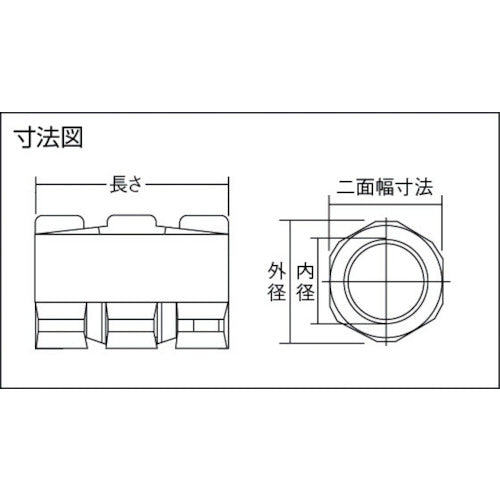

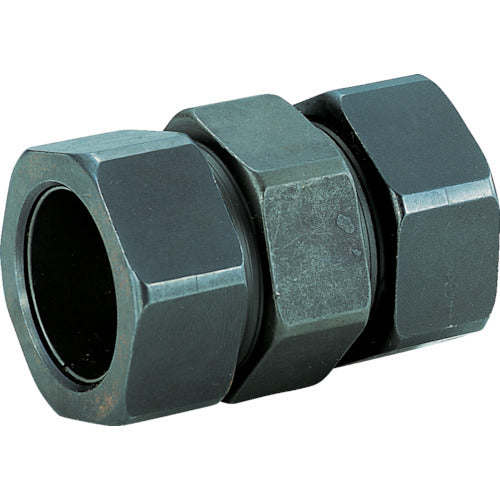

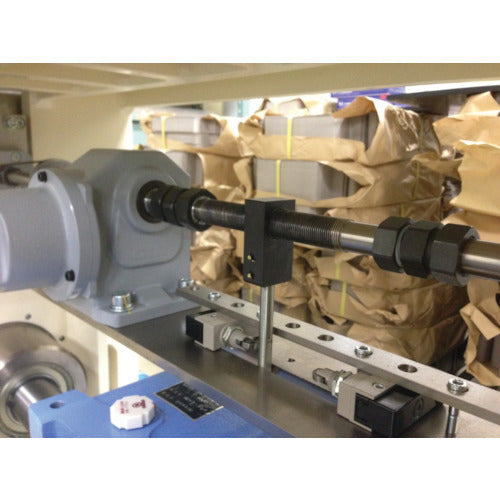

Catalogue number: N-22-22 Features: ●No backlash (play or gap) and can withstand combined torque and thrust loads. ●Compact and lightweight with little inertia, simple structure and easy installation and disassembly. ●Coupling for keyless fixing of shafts. ●The surface is treated with manganese phosphate coating to prevent seizing. Applications: ●Fixing of input and output shafts to each unit. Specifications: ●Inner diameter (mm): 22 ●Outer diameter (mm): 35 ●Length (mm): 52 ●Maximum allowable torque (N・m): 103 ●Allowable thrust (N・m): 5491 ●Two-face width dimension (mm): 32 ●Operating temperature range: -20 to 100°C Material/Finish: ●Steel Set contents/Accessories: ●Freight separately
