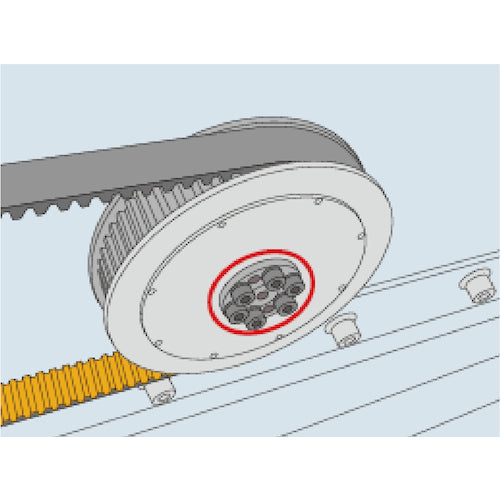

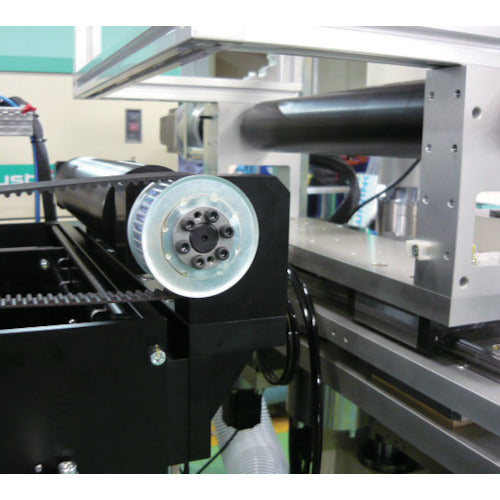

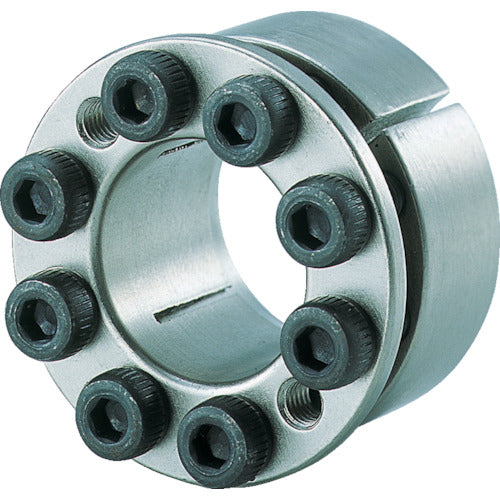

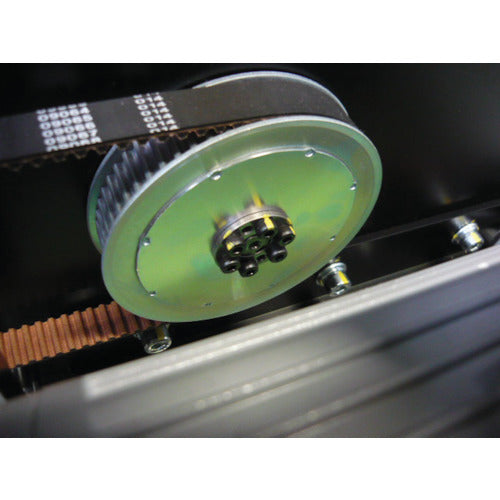

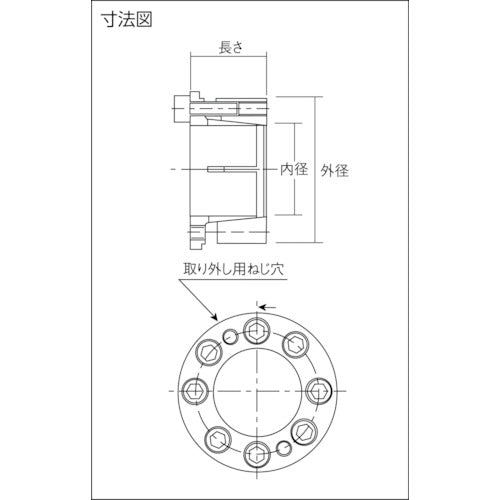

Catalog number: MA-28-46 Features: ● Compact type with minimized outer diameter. ● Excellent centering effect due to the inlay on the flange of the inner ring. ● Phase alignment and positioning can be adjusted freely. ● When tightening the lock bolt, there is no axial movement of the hub. ● No backlash, so there is no rattle. Applications: ● Machine tools, conveying equipment, robots, various automatic machines. Specifications: ● Inner diameter (mm): 28 ● Outer diameter (mm): 46 ● Length (mm): 26.6 ● Maximum allowable torque (N・m): 380 ● Allowable thrust (N・m): 27 ● Mounting bolt: M5×18 ● Standard type ● Operating temperature range: -20 to 100℃ ● Number of bolts: 4 Material/Finish: ● Steel Set contents/Accessories: ● Shipping charges are charged separately.
