ISEL Mechalock MKA Series Inner Diameter 22 MKA-22-40 1 pc

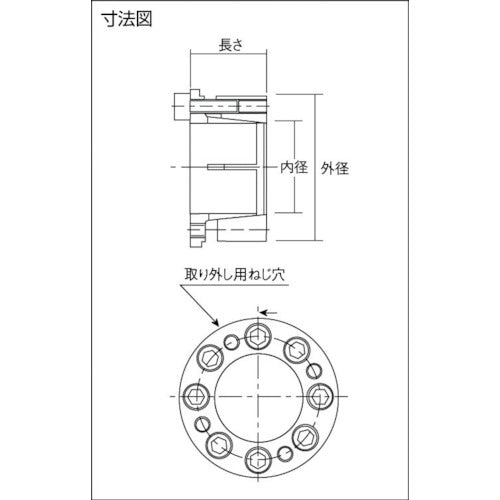

Catalog number: MKA-22-40 Features: ● Rust-resistant due to rust-proof plating. ● Compact type with minimized outer diameter. ● Excellent centering effect due to the inlay on the flange of the inner ring. ● Phase alignment and positioning can be freely adjusted. ● When tightening the lock bolt, the hub does not move in the axial direction. ● No backlash, so there is no rattle. Applications: ● Machine tools, conveying equipment, robots, various automatic machines. Specifications: ● Inner diameter (mm): 22 ● Outer diameter (mm): 40 ● Length (mm): 24.1 ● Maximum allowable torque (N・m): 201 ● Allowable thrust (N・m): 18.3 ● Mounting bolt: M5×18 ● Simple rust-proof plating type ● Operating temperature range: -20 to 100℃ ● Number of bolts: 4 Material/Finish: ● Steel ● Surface treatment: Electroless nickel plating Set contents/Accessories: ● Shipping charges are charged separately
