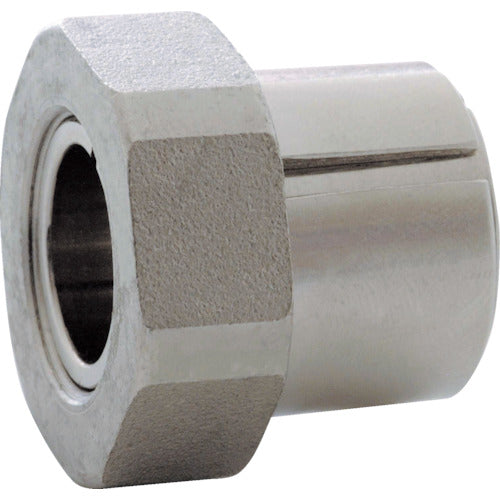

ISEL Mechalock MKN Series Inner Diameter 30 MKN-30-42 1 pc

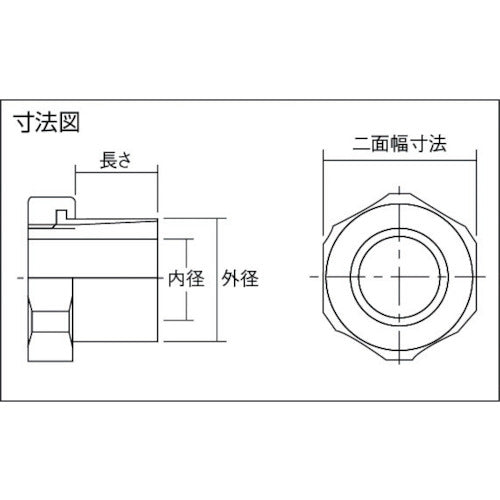

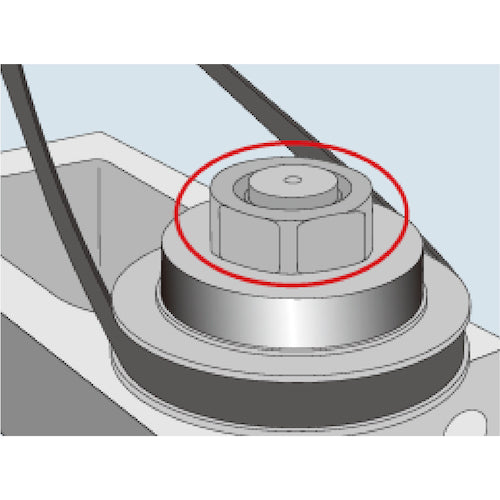

Catalogue number: MKN-30-42 Features: ●Positioning and phase alignment can be performed at any position, and non-backlash fastening can be achieved. ●Kanigen plating (simple rust-proof electroless nickel plating type) prevents rust. Applications: ●For use in semiconductor liquid crystal devices and clean rooms. Specifications: ●Inner diameter (mm): 30 ●Outer diameter (mm): 42 ●Length (mm): 30 ●Maximum allowable torque (N・m): 392 ●Allowable thrust (N・m): 25.5 ●Two-sided width dimension (mm): 55 ●Simple rust-proof nut tightening type ●Operating temperature range: -20 to 100°C Materials/Finish: ●Steel ●Surface treatment: Electroless nickel plating Set contents/Accessories: ●Freight charges apply separately
