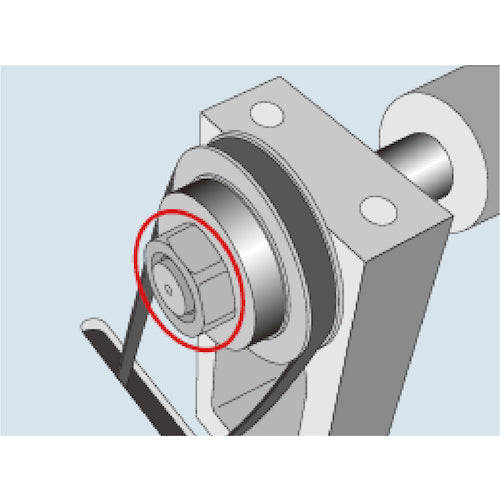

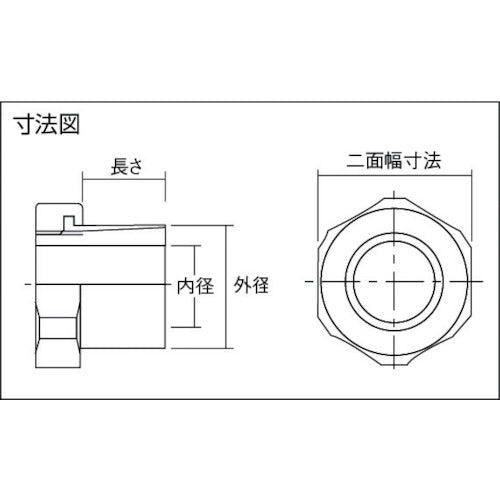

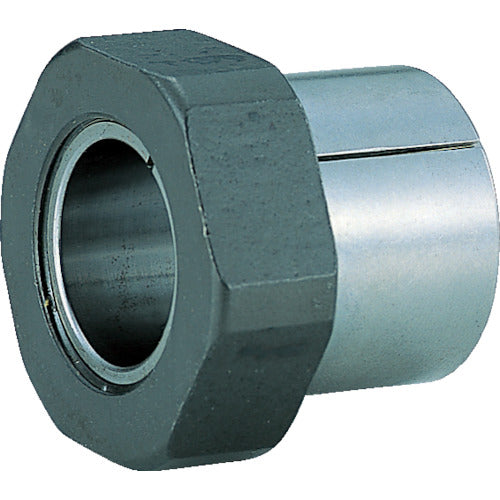

Catalogue number: MN-24-34 Features: ●It can be attached and detached simply by tightening and loosening the nut, so it is extremely easy to install and remove. ●It has a centering function. ●Positioning and phase alignment can be done at any position, and non-backlash fastening can be achieved. Applications: ●Where the hub is thin or where light torque is required. Specifications: ●Inner diameter (mm): 24 ●Outer diameter (mm): 34 ●Length (mm): 24 ●Maximum allowable torque (N・m): 314 ●Allowable thrust (N・m): 25.5 ●Two-face width dimension (mm): 41 ●Nut tightening type ●Operating temperature range: -20 to 100°C Material/Finish: ●Steel Set contents/Accessories: ●Freight charges apply separately.
