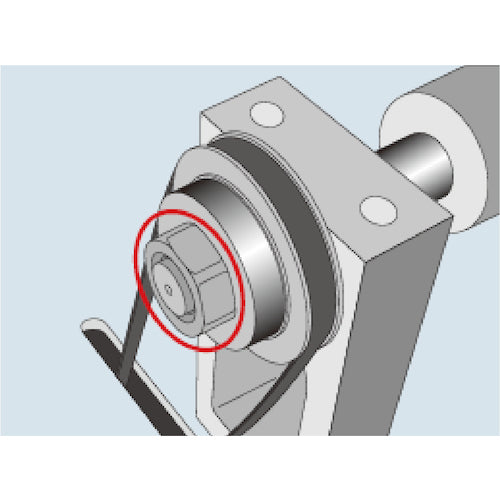

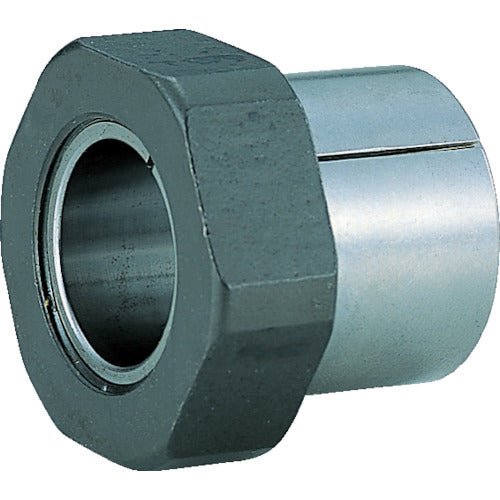

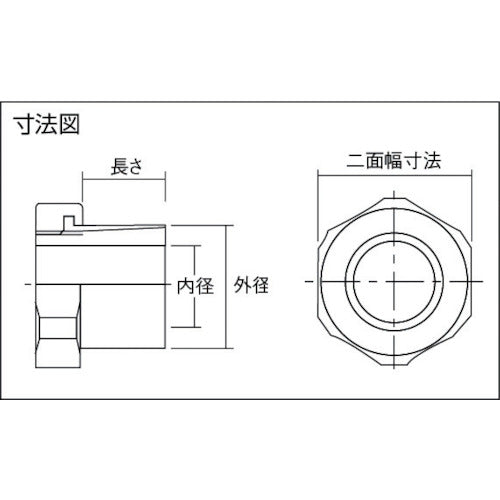

Catalogue number: MN-28-40 Features: ●It can be attached and detached simply by tightening and loosening the nut, so it is extremely easy to install and remove. ●Has a centering function. ●Positioning and phase alignment can be done at any position, allowing for non-backlash fastening. Applications: ●Where the hub is thin or where light torque is required. Specifications: ●Inner diameter (mm): 28 ●Outer diameter (mm): 40 ●Length (mm): 28 ●Maximum allowable torque (N・m): 378 ●Allowable thrust (N・m): 26.5 ●Two-face width dimension (mm): 50 ●Nut tightening type ●Operating temperature range: -20 to 100°C Material/Finish: ●Steel Set contents/Accessories: ●Freight charges apply separately.
