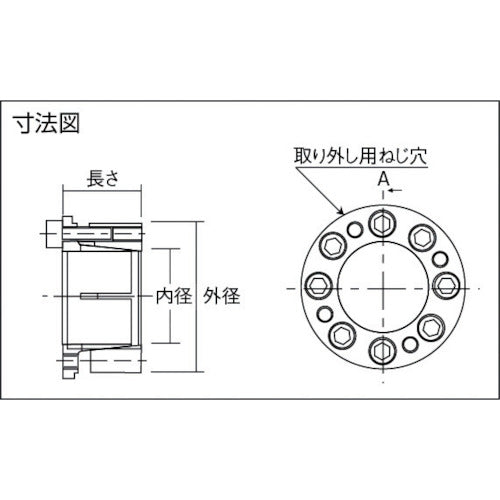

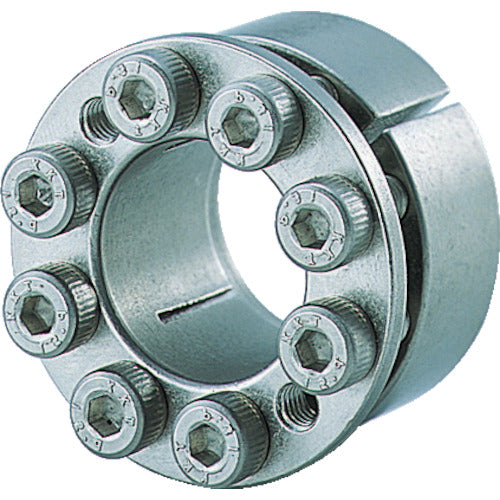

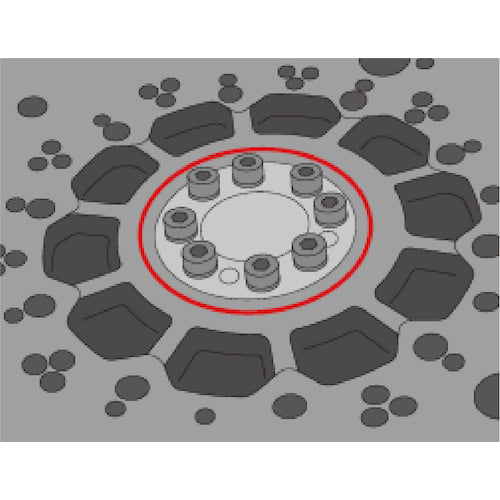

Catalog number: MSA-35-57 Features: ●The inlay on the flange of the inner ring provides excellent centering effect. ●Phase alignment and positioning can be adjusted freely. ●When tightening the lock bolt, the hub does not move in the axial direction. ●There is no backlash, so there is no rattle. Applications: ●Machine tools, conveying equipment, robots, various automatic machines. Specifications: ●Inner diameter (mm): 35 ●Outer diameter (mm): 57 ●Length (mm): 30 ●Maximum allowable torque (N・m): 301.1 ●Allowable thrust (N・m): 17.16 ●Mounting bolt: M6×20 ●Clean type that does not rust ●Using temperature range: -20 to 100℃ ●Number of bolts: 4 Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Freight separately
