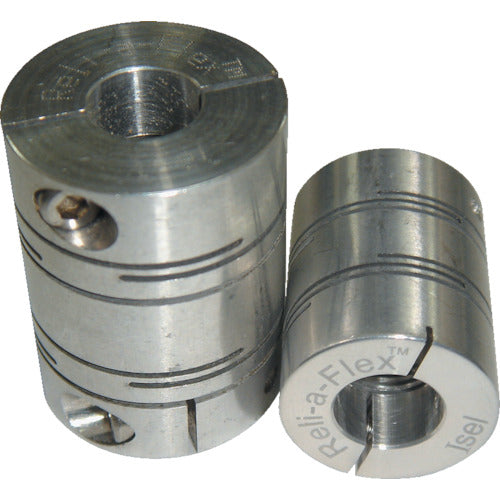

ISEL [Sold out and discontinued] Coupling RCLA series Flexible type Inner diameter 5 x 6 Outer diameter 20 mm RCLA-20C5-6 1 piece

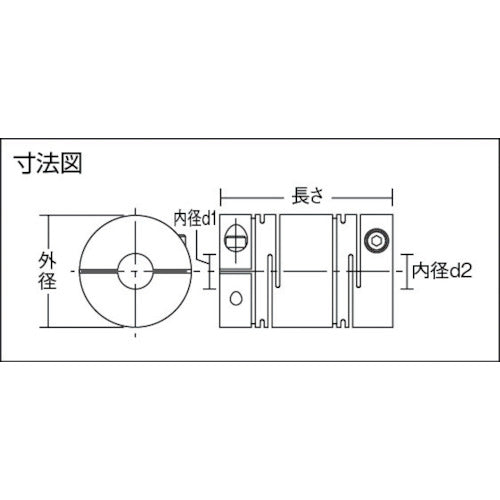

Catalog number: RCLA-20C5-6 Features: ●This joint can tolerate misalignment between two shafts (eccentricity, angular misalignment, axial displacement). ●The unique double slit structure and high-strength duralumin (A7075-T6) provide high torsional rigidity, improving servo responsiveness and positioning accuracy. ●The fatigue-resistant duralumin used provides high durability. ●The reaction force in the direction of shaft misalignment is small, reducing the load, improving the unit's operating time. ●The shaft can be fastened with a single bolt on the side. Applications: ●For stepping motor output shafts. ●For small servo motor output shafts. Specifications: ●Outer diameter (mm): 20 ●Length (mm): 26 ●Maximum allowable torque (N・m): 1.45 ●Inner diameter d1×d2 (mm): 5×6 ●Operating temperature range: -20 to 100℃ Material/Finish: ●Duralumin Set contents/Accessories: ●Freight charges are charged separately.
