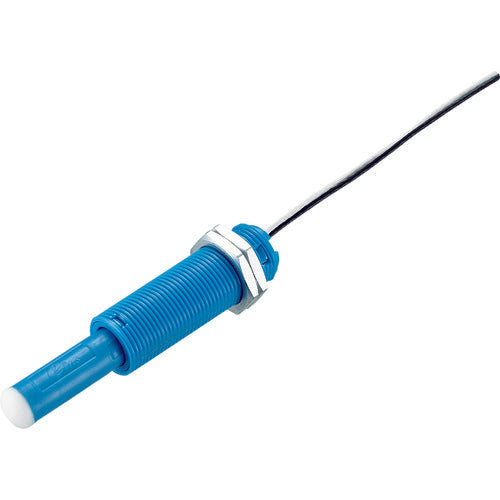

Einz Star Sensor SSW-15 1 piece

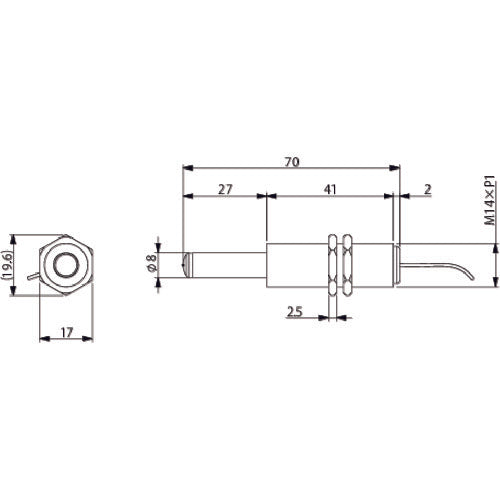

Catalog number: SSW-15 Features: ●Silicone rubber is used at the tip, so the product will not be scratched. ●Reed switch is used inside to improve durability. ●Two-wire type for easy connection. Specifications: ●Width (mm): 19.6 ●Depth (mm): 19.6 ●Length (mm): 70 ●Height (mm): 70 ●Contact type: 1A ●Contact position: Off-center gap ●Maximum contact capacity: 20W ●Maximum opening and closing voltage: 200VDC ●Maximum opening and closing current: 0.5A ●Sensing value: 15-50A (±2A) ●Sensing stroke: 2.5mm to 15mm ●Opening value: 5A (min) (±2A) ●Voltage resistance: 250VDC ●Ambient operating temperature: -25 to 80°C Set contents/accessories: ●Hexagonal nut M14 x P1 (2 pieces)
