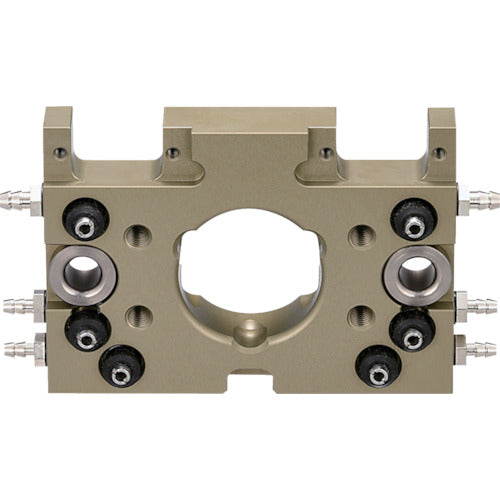

Einz Tool Changer Tool Side OX-SBNI 1 pc

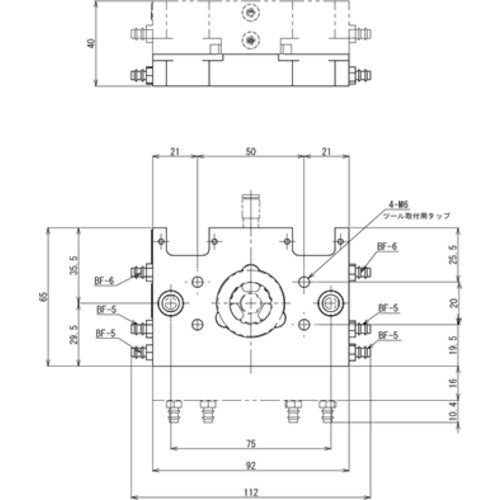

Catalog number: OX-SBNI Features: ● Equipped with a unique release mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Robot hand can be easily replaced in a short time. ● Air option can be added. Specifications: ● Type: Tool side ● Width (mm): 92 ● Depth (mm): 20.5 ● Height (mm): 65 ● Payload capacity (kg): Up to 10 ● Pull-in force/push-out force (N): 1700/550 ● Payload capacity: Up to 10kg ● Air pressure used: 0.5-0.7MPa ● Thickness when connected: 40mm ● No connector ● Pipe connection: 6 circuits (M5) ● Position repeatability: ±0.02mm Material/Finish: ● Super duralumin
