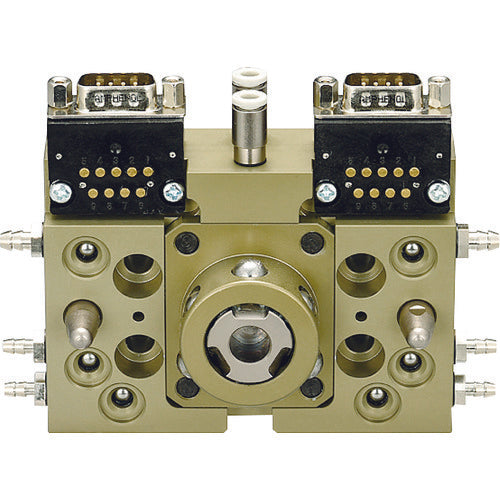

Einz Tool Changer Robot Side OX-SB 1pc

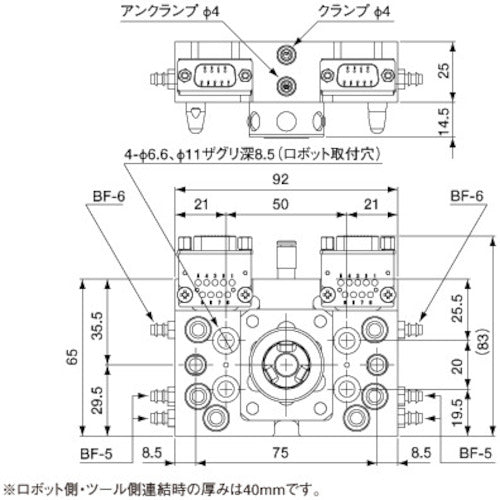

Catalog number: OX-SB Features: ● Equipped with a unique release mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Built-in air check valve. (Robot side) ● Air option can be added. Specifications: ● Type: Robot side ● Width (mm): 92 ● Depth (mm): 39.5 ● Height (mm): 83 ● Payload capacity (kg): Up to 10 ● Pull-in force/push-out force (N): 1700/550 ● Payload capacity: Up to 10kg ● Thickness when connected: 40mm ● Electrical contacts: 9 cores x 2 2A DC24V Max ● Connector formation: D-SUB connector & probe connector ● Pipe connection: 6 circuits (M5) ● Air pressure used: 0.5 to 0.7MPa ● Position repeatability: ±0.02mm Material/Finish: ● Made of super duralumin
