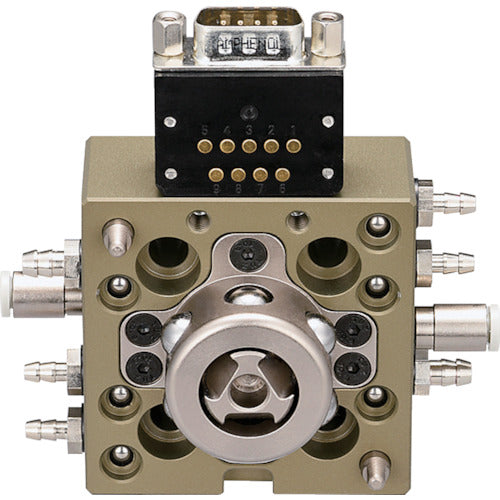

Einz Tool Changer Robot Side OX-SBS 1 pc

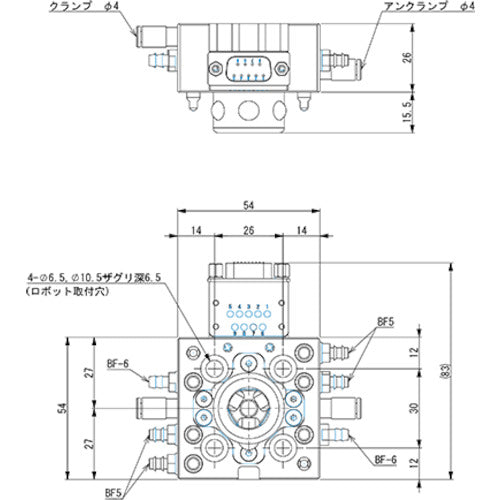

Catalogue number: OX-SBS Features: ● Equipped with a unique release mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Robot hand can be easily replaced in a short time. ● Built-in air check valve. (Robot side) ● Air option can be added. Specifications: ● Type: Robot side ● Width (mm): 54 ● Depth (mm): 83 ● Height (mm): 41.5 ● Payload capacity (kg): Up to 5 ● Pull-in force/push-out force (N): 1000/280 ● Electrical contact: 9 cores x 1 (2A DC24V Max) ● Air pressure used: 0.5 to 0.7MPa ● Thickness when connected: 29mm ● Connector: D-SUB connector & probe connector ● Pipe connection: 6 circuits (M5) ● Position repeatability: ±0.02mm Material/Finish: ● Super duralumin
