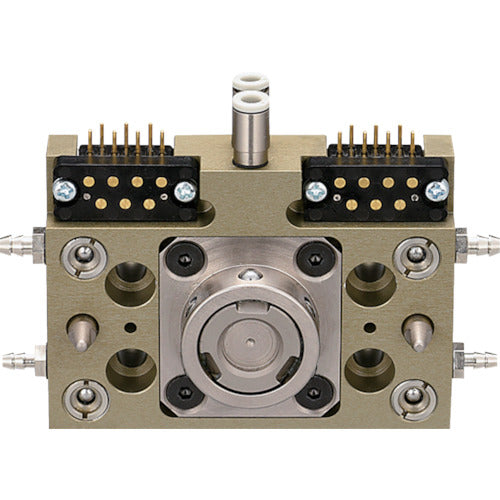

Einz Tool Changer Robot Side OX-SSB 1 pc

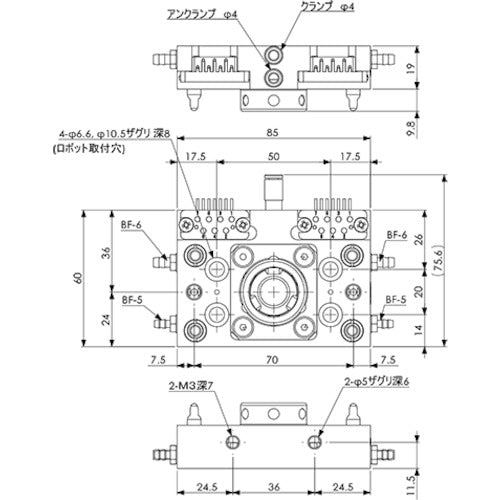

Catalog number: OX-SSB Features: ●Robot hands can be easily replaced in a short time. ●Equipped with a unique detachment mechanism. (Patent No. 4126074) ●Built-in fail-safe mechanism. ●Built-in air check valve. (Robot side) ●Air options can be added. Specifications: ●Type: Robot side ●Width (mm): 85 ●Depth (mm): 75.6 ●Height (mm): 28.8 ●Load capacity (kg): Up to 3 ●Pull-in force/push-out force (N): 1500/480 ●Connector formation: Probe connector ●Position repeatability: ±0.02mm ●Air pressure used: 0.5-0.7MPa ●Pipe connection: SSB (4 circuits M5), SBS (6 circuits/M5) ●Electrical contacts: 7 cores x 2 (2A DC24V Max) ●Thickness when connected: 29mm Material/Finish: ●Made of super duralumin + iron
