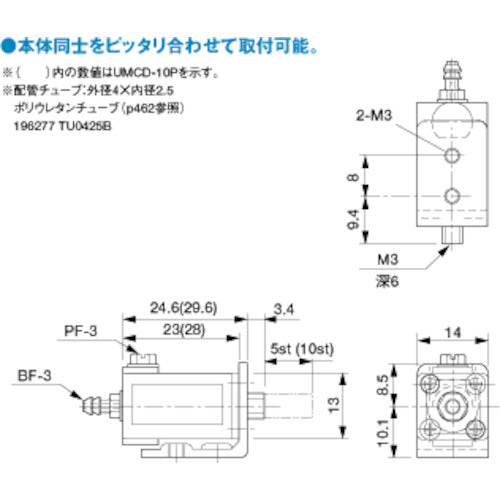

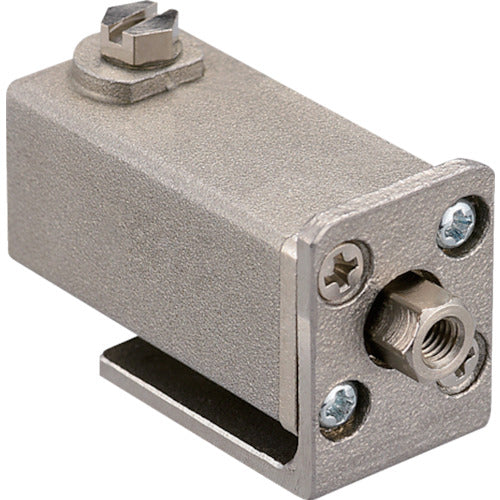

Catalog number: UMCD-10P Features: ●The bodies can be fitted together perfectly. ●Ideal for chucking small products. ●With anti-rotation function for cylinder rod Specifications: ●Stroke (mm): 10 ●Width (mm): 14 ●Depth (mm): 33 ●Height (mm): 18.6 ●Mounting hole: 2-M3 ●Output (N): 24 ●Structure: Single acting type ●Air pressure used: 0.3 to 0.5 MPa ●Output: 28 N (at operating pressure of 0.5 MPa) ●Pipe connection: M3 ●Connection hose: φ4 mm
