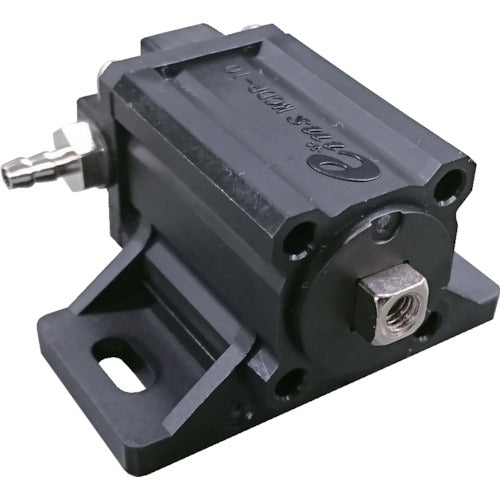

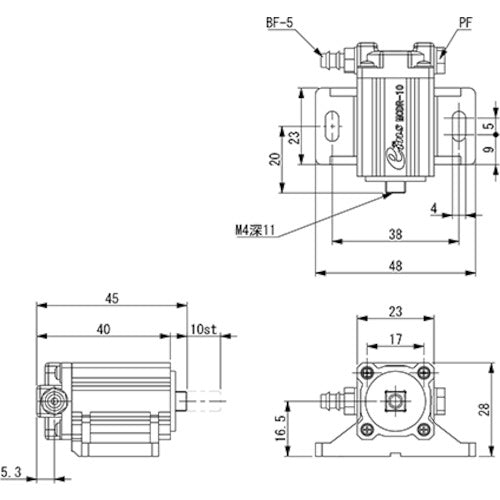

Catalogue number: MCDR-10 Features: ●The body is made of resin, making it extremely lightweight. ●It has a cylinder rod anti-rotation function. Specifications: ●Stroke (mm): 10 ●Width (mm): 48 ●Depth (mm): 45 ●Height (mm): 28 ●Mounting holes: 4 x 5 ●Power output (N) push: 98 ●Power output (N) pull: 19 ●Structure: Single acting ●Air pressure used: 0.3 to 0.5 MPa ●Push power: 98 N ●Pull power: 19 N ●Aluminum body (MCD1) 65 g ⇒ 40 g (38.5% lighter) ●Pipe connection: M5 ●Connection hose: φ4 mm ●Mounting bolt: (M3) x 2 Set contents/accessories: ●Mounting washer
