(株)スター精機アインツ事業部

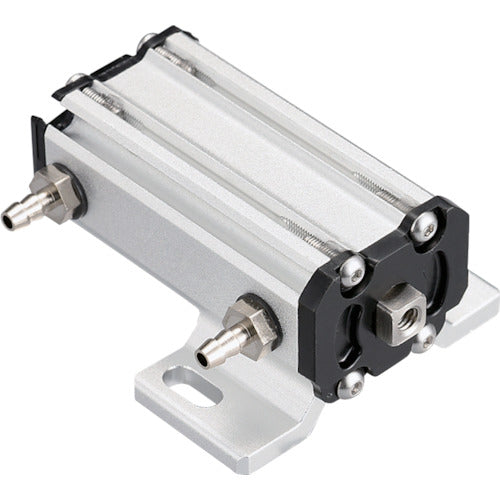

Einz Mini Cylinder MCE-20W (Double Acting) MCE-20W 1 pc
Einz Mini Cylinder MCE-20W (Double Acting) MCE-20W 1 pc
Regular price
¥4,010
Regular price
Sale price
¥4,010
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

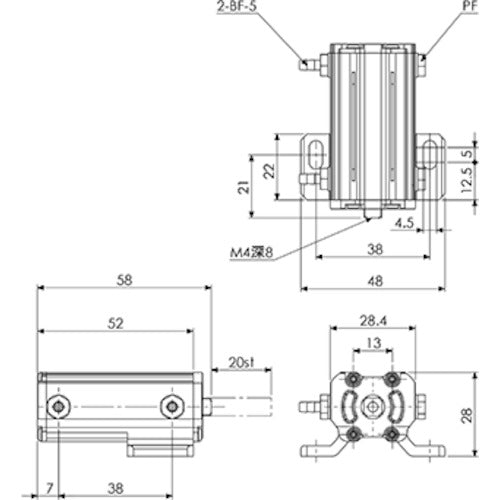

Catalogue number: MCE-20W Features: ●An auto switch can be installed to check the cylinder's out/return limits. ●Comes with a cylinder rod anti-rotation function. ●Lightweight aluminum body cylinder. Specifications: ●Stroke (mm): 20 ●Width (mm): 48 ●Depth (mm): 58 ●Height (mm): 28 ●Type: Double acting ●Mounting holes: 4.5 x 5 ●Power output (N) push: 130 ●Power output (N) pull: 108 ●Structure: Double acting type ●Operating air pressure: 0.3 to 0.5 MPa ●Pipe connection: M5 ●Connection hose: φ4 mm ●Mounting bolts: (M4) x 2
