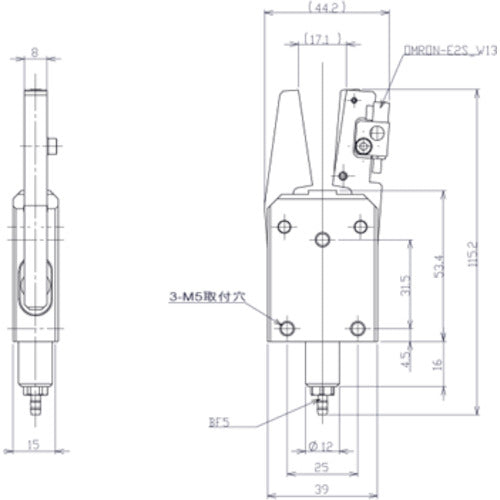

Einz Runner Chuck EL (with sensor) CHK-EL-12-C 1 piece
Einz Runner Chuck EL (with sensor) CHK-EL-12-C 1 piece
Regular price
¥30,167
Regular price
Sale price
¥30,167
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: CHK-EL-12-C Features: ●Lightweight, high rigidity, and long life due to the use of super duralumin material ●You can choose between screw holes (M5) and Jungle Gym series Φ12 connector for installation. Specifications: ●Type: With proximity sensor ●Width (mm): 44.2 ●Depth (mm): 115.2 ●Height (mm): 16 ●Attached fitting: BF-5 ●Installation: 3-M5 ●Structure: Single-acting type ●Gripping force: 45N ●Claw: Super duralumin specification ●DC 3-wire type (harness length 1000mm) ●Air pressure used: 0.4 to 0.5Mpa ●Pipe: Φ4 Material/Finish: ●Main body and claw: Super duralumin Note: ●End processing is not performed.
View full details
