(株)スター精機アインツ事業部
Einz Runner Chuck EL (with limit switch) CHK-EL1-12-C1 1 piece
Einz Runner Chuck EL (with limit switch) CHK-EL1-12-C1 1 piece
Regular price
¥27,036
Regular price
Sale price
¥27,036
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

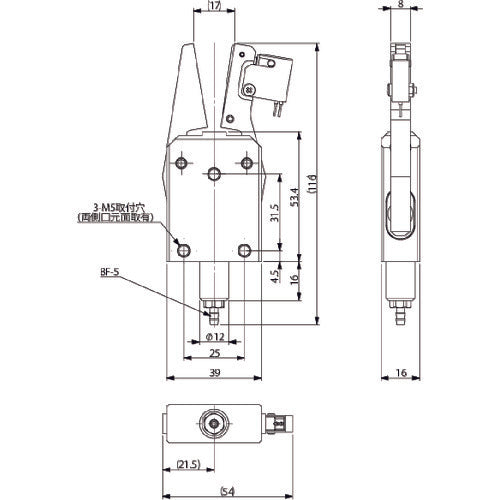

Catalog number: CHK-EL1-12-C1 Features: ●Iron claws improve wear resistance. ●Can be directly attached to Jungle Gym series connecting fittings (Φ12). Specifications: ●Type: With limit switch ●Width (mm): 54 ●Depth (mm): 116 ●Height (mm): 16 ●Attached fittings: BF-5 ●Mounting: 3-M5 ●Structure: Single acting type ●Gripping force: 45N ●DC 2-wire type ●Rated current: 1mA 5VAC to 100mA 30VDC ●Harness length: 300mm ●Air pressure used: 0.4-0.5Mpa ●Pipe: Φ4 Material/Finish: ●Body: Super duralumin ●Claws: Iron Note: ●The ends of the sensor harness are not processed.
