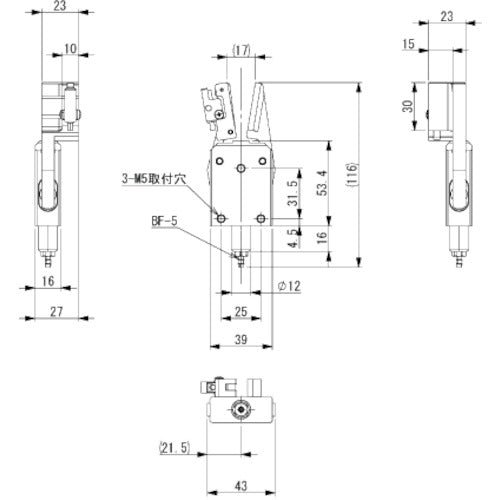

Einz Runner Chuck EL (with limit switch) CHK-EL2L-12-C1 1 piece

Catalog number: CHK-EL2L-12-C1 Features: ●Iron claws improve wear resistance. ●You can choose between screw holes (M5) and Jungle Gym Series Φ12 connectors for installation. Specifications: ●Type: With limit switch ●Width (mm): 54 ●Depth (mm): 116 ●Height (mm): 27 ●Attached fitting: BF-5 ●Installation: 3-M5 ●Claw tip opening (mm): 17 ●Installation hole pitch (mm): 25 x 31.5 ●Installation bolt: 3-M5 ●Structure: Single-acting type ●Gripping force: 45N (at operating pressure 0.5Mpa) ●Air pressure used: 0.4 to 0.5Mpa ●DC 3-wire type (harness length 1000mm) ●Main body: Super duralumin ●Claws: Iron (L-shaped) Material/Finish: ●Main body: Super duralumin ●Claws: Iron Note: ●The ends of the sensor harness are not processed.
