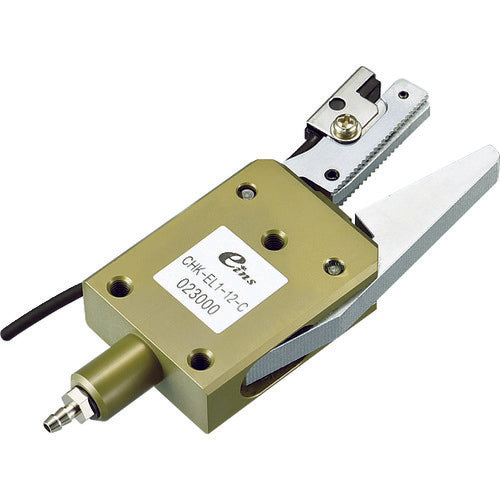

Einz Runner Chuck EL (with proximity sensor) CHK-EL1-12-C 1 piece

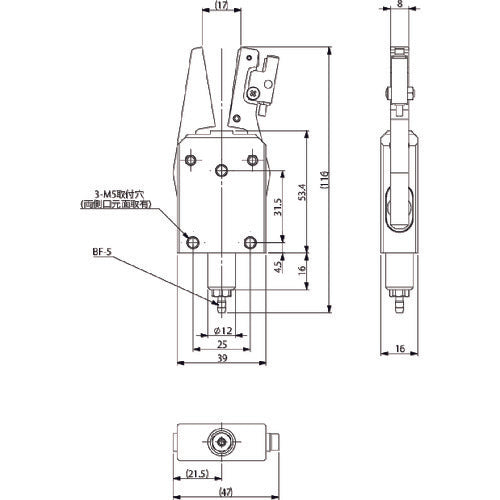

Catalog number: CHK-EL1-12-C Features: ●Iron claws improve wear resistance. ●Can be directly attached to Jungle Gym Series connecting fittings (Φ12). Specifications: ●Type: With proximity sensor ●Width (mm): 47 ●Depth (mm): 116 ●Height (mm): 16 ●Attached fittings: BF-5 ●Mounting: 3-M5 ●Structure: Single acting type ●Gripping force: 45N ●DC 3-wire type ●Harness length: 1,000mm ●Air pressure used: 0.4-0.5Mpa ●Pipe: Φ4 Material/Finish: ●Body: Super duralumin ●Claws: Iron Note: ●The ends of the sensor harness are not processed.
