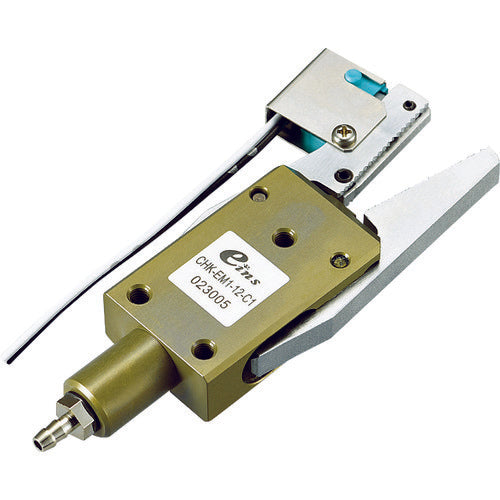

Einz Runner Chuck EM (with limit switch) CHK-EM1-12-C1 1 piece

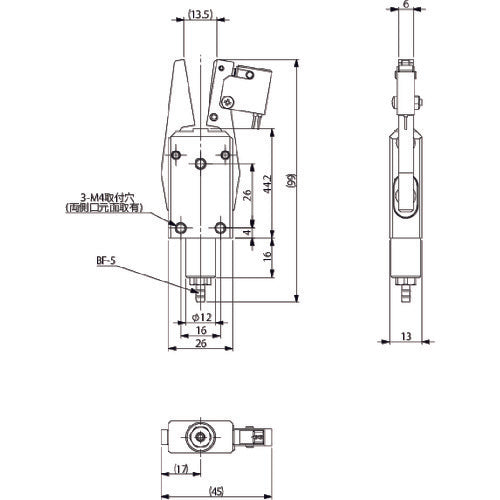

Catalog number: CHK-EM1-12-C1 Features: ●Iron claws improve wear resistance. ●Can be directly attached to Jungle Gym series connecting fittings (Φ12). Specifications: ●Type: With limit switch ●Width (mm): 45 ●Depth (mm): 98 ●Height (mm): 13 ●Attached fittings: BF-5 ●Mounting: 3-M4 ●Structure: Single acting type ●Gripping force: 28N ●DC 2-wire type ●Rated current: 1mA 5VAC to 100mA 30VDC ●Harness length: 300mm ●Air pressure used: 0.4-0.5Mpa ●Connection hose: Φ4mm Material/Finish: ●Body: Super duralumin ●Claws: Iron Note: ●End processing is not performed.
