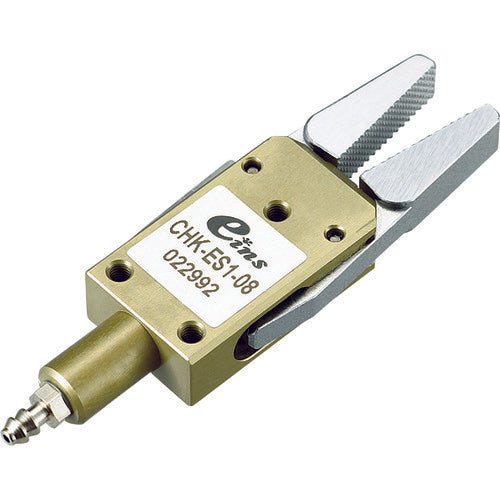

Einz Runner Chuck ES (without sensor) CHK-ES1-08 1 piece
Einz Runner Chuck ES (without sensor) CHK-ES1-08 1 piece
Regular price
¥17,218
Regular price
Sale price
¥17,218
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: CHK-ES1-08 Features: ●Iron claws improve wear resistance. ●You can choose between screw holes (M3) and Jungle Gym Series φ8 connectors for installation. Specifications: ●Type: No sensor ●Width (mm): 23 ●Depth (mm): 72 ●Height (mm): 9 ●Attached fittings: BF-3 ●Installation: 3-M3 ●Structure: Single-acting type ●Gripping force: 5N ●Air pressure used: 0.4 to 0.5Mpa ●Connection hose: φ4mm Materials/Finish: ●Body: Super duralumin ●Claws: Iron Note: ●Sensors cannot be retrofitted.
