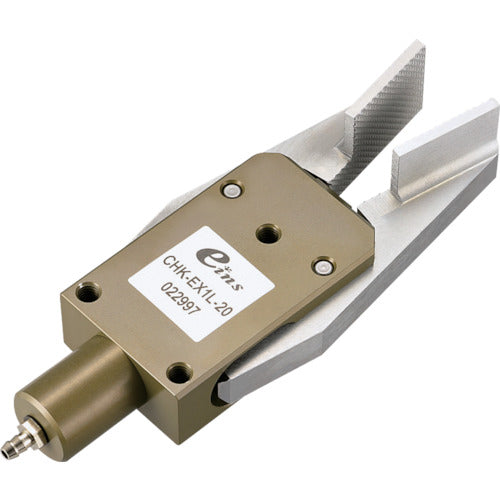

Einz Runner Chuck EX (without sensor) CHK-EX1L-20 1 piece

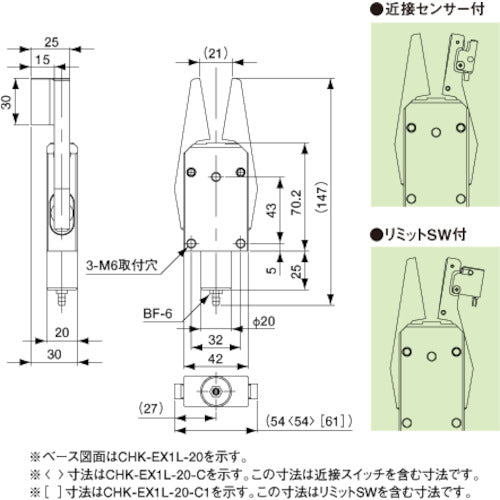

Catalog number: CHK-EX1L-20 Features: ●Iron claws improve wear resistance. ●By making the claws L-shaped, the installation surface can be increased and the gripping position can be moved closer to the workpiece. ●You can choose between a screw hole (M6) and a Jungle Gym series φ20 connector for installation. Specifications: ●Type: No sensor ●Width (mm): 54 ●Depth (mm): 30 ●Height (mm): 147 ●Attached joint: BF-6 ●Installation: 3-M6 ●Claw tip opening (mm): 21 ●Installation hole pitch (mm): 32 x 43 ●Structure: Single-acting type ●Gripping force: 80N ●Claw part: Iron (L-shaped) ●Pipe: φ4 ●Air pressure used: 0.4 to 0.5Mpa Caution: ●Sensor cannot be retrofitted.
