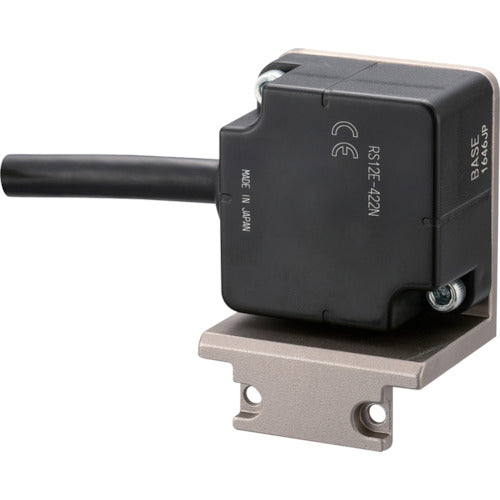

Einz Wireless Connector 12P, Robot Side OX-RS12R-LB 1 pc

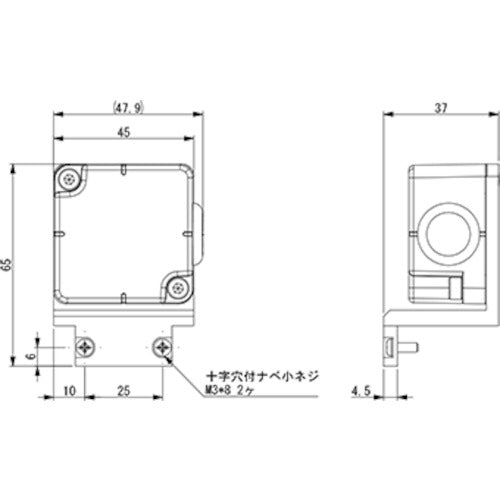

Catalog number: OX-RS12R-LB Features: ●Since it is non-contact, it can be used in places with a lot of water and dust. ●The output format is NPN type. Specifications: ●Type: Robot side ●Compatible model: OX-LB ●Width (mm): 48 ●Depth (mm): 37 ●Height (mm): 65 ●Harness length (mm): 2000 ●Number of input/output points: 12 points + 1 point ●Tool changer accessory ●Drive voltage: 12V ± 1.5VDC ●Attached mounting screws: Cross recessed pan head screw M3 × 8 ●Cable length: 2m on robot side ●Circuit protection: Short circuit protection, reverse connection protection, surge protection ●Power supply voltage: DC24V ●Protection structure: IP67 compliant
