Einz Wireless Connector 12P, Robot Side OXR-RS12R-20 1 pc

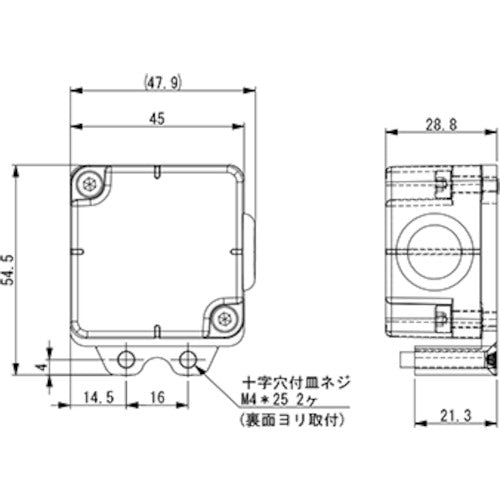

Catalog number: OXR-RS12R-20 Features: ●Can be used with OX for articulated robots. ●Non-contact, so can be used in places with a lot of water or dust. Specifications: ●Type: Robot side ●Installation position: Robot side ●Compatible models: OX-10/20 ●Width (mm): 47.9 ●Depth (mm): 28.8 ●Height (mm): 54.5 ●Number of input/output points: 12 points + 1 point ●Tool changer accessory ●Drive voltage 12V ± 1.5VDC ●Number of input/output points 12 points + 1 point ●Cable length: Robot side 2m, tool side 1m ●Output type is NPN type ●Power supply voltage: DC24V ●Protection structure IP67 compliant
