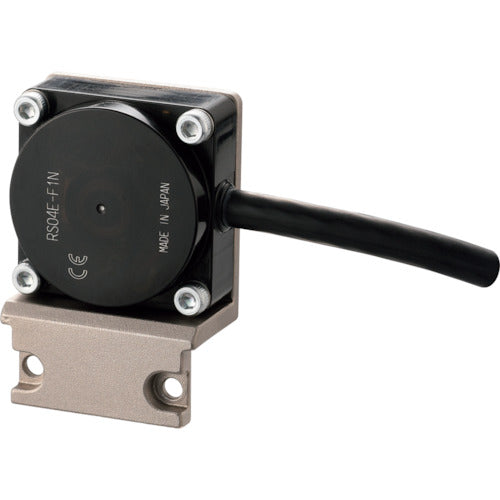

Einz Wireless Connector 4P, Robot Side OX-RS04R-SB 1 pc

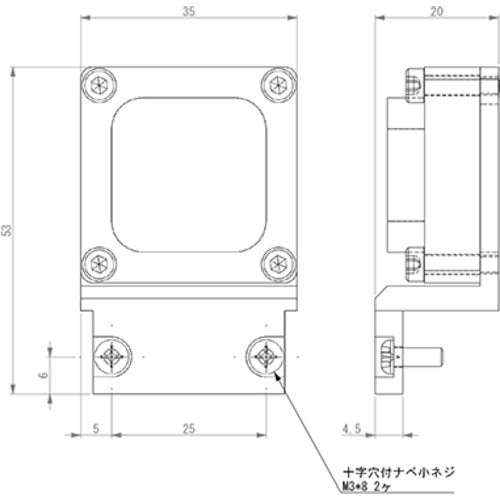

Catalog number: OX-RS04R-SB Features: ●Since it is non-contact, it can be used in places with a lot of water and dust. ●The output format is NPN type. Specifications: ●Type: Robot side ●Installation position: Robot side ●Compatible model: OX-SB ●Width (mm): 35 ●Depth (mm): 20 ●Height (mm): 53 ●Harness length (mm): 2000 ●Number of input/output points: 4 points + 1 point ●Power supply voltage: DC24V ●Drive voltage: 12V±1.5VDC ●Protection structure IP67 compliant ●Cable length: 2m on the robot side, 1m on the tool side ●Output format: NPN type ●Attached mounting screws: Cross recessed pan head screw M3×8 ●Circuit protection: Short circuit protection, reverse connection protection, surge protection ●Number of input/output points: 4 points + 1 point
